A001

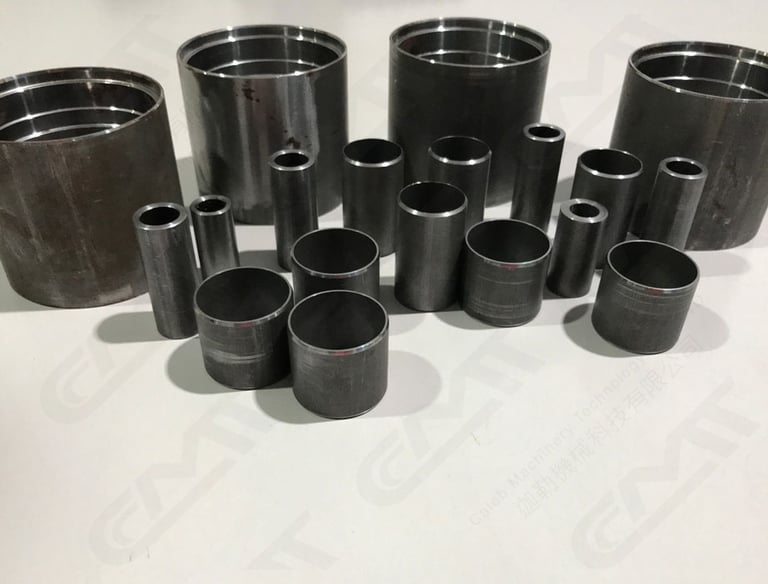

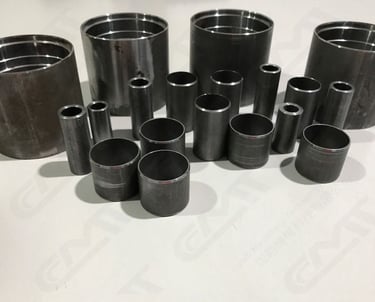

Product Name: Precision Steel Bushings & Sleeves

Material:

• High-quality carbon steel / alloy steel

• Optional materials: stainless steel, tool steel, and other custom options

Surface Finish:

• Precision-machined inner and outer diameter

• Smooth bore for reduced friction

• Deburred edges for safety and smooth assembly

Dimensions:

• Inner Diameter (ID): 5 mm – 80 mm (custom sizes available)

• Outer Diameter (OD): 10 mm – 90 mm (custom sizes available)

• Length: 10 mm – 100 mm (custom sizes available)

Tolerance:

• Diameter: ±0.01 mm

• Length: ±0.05 mm

Features:

• High wear resistance

• Optional corrosion-resistant coating

• Suitable for high-load applications

• Custom machining available (grooves, lubrication holes, flanges, etc.)

Applications:

• Automotive components

• Industrial machinery

• CNC parts and fixtures

• Hydraulic and pneumatic systems

A002

A003

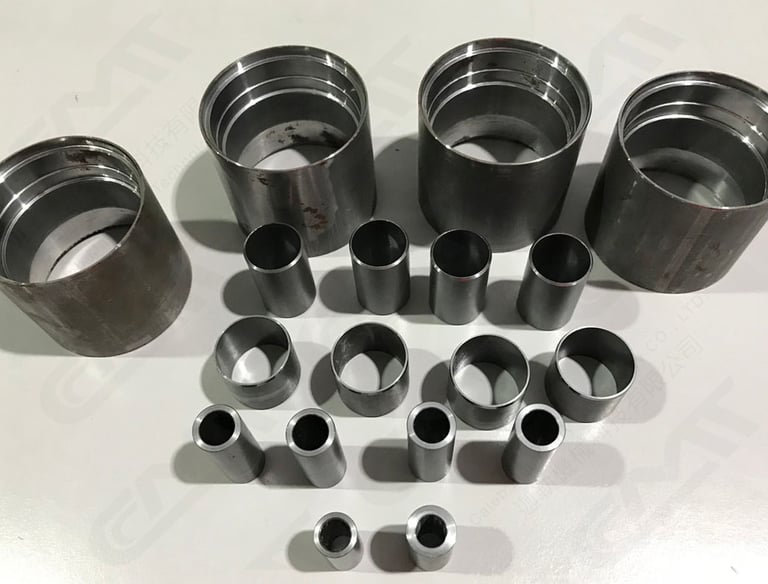

Product Name: Precision Steel Bushings & Sleeves

Material:

• High-quality carbon steel / alloy steel

• Optional: stainless steel, tool steel, brass, bronze, or other custom materials

Surface Finish:

• Precision-machined inner & outer diameter

• Smooth bore to reduce friction

• Deburred edges for safety and ease of assembly

Dimensions:

• Inner Diameter (ID): 5 mm – 80 mm (custom sizes available)

• Outer Diameter (OD): 10 mm – 90 mm (custom sizes available)

• Length: 10 mm – 100 mm (custom sizes available)

Tolerance:

• Diameter: ±0.01 mm

• Length: ±0.05 mm

Features:

• High wear resistance

• Optional corrosion-resistant coating

• Suitable for high-load applications

• Custom machining available (grooves, lubrication holes, flanges, etc.)

Applications:

• Automotive components

• Industrial machinery

• CNC parts & fixtures

• Hydraulic & pneumatic systems

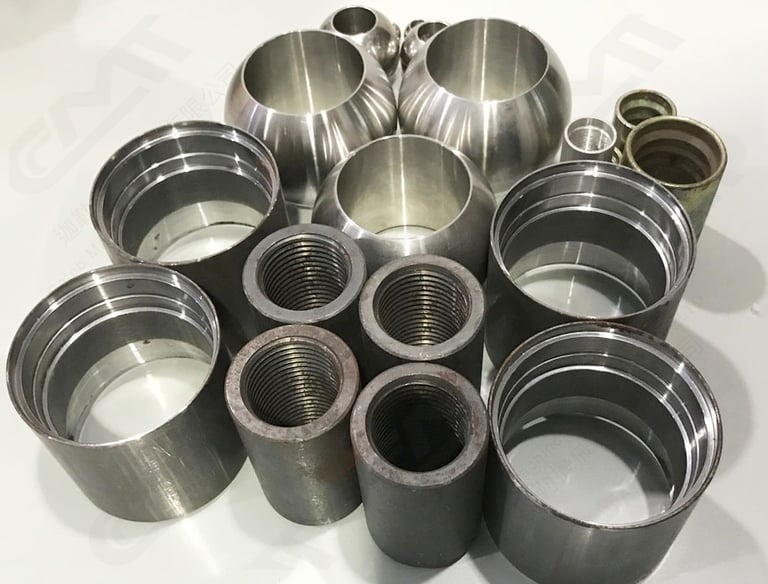

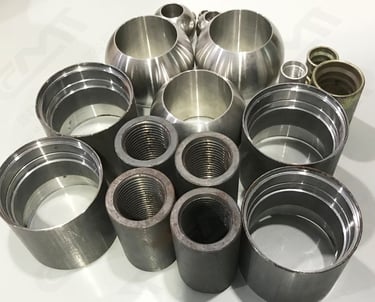

Precision CNC Machined Metal Components

Material:

• Stainless Steel (304 / 316)

• Carbon Steel

• Alloy Steel

• Aluminum

• Brass / Bronze

Product Types & Sizes

1. Bushings / Sleeves (Plain & Threaded):

• ID: 5–80 mm

• OD: 10–90 mm

• Length: 10–100 mm

• Tolerance: ±0.01 mm (dia), ±0.05 mm (length)

• Custom options: grooves, lubrication holes, flanges

2. Spherical Components (Balls & Half Balls)

• Diameter: 20–100 mm

• Solid or hollow

• Polished finish available

3. Threaded Couplings & Pipe Fittings

• Thread: ISO, BSP, NPT,

• Metric, UNC/UNF ID: 10–60 mm

• Length: 20–80 mm

Surface Finish:

• Precision-machined

• Polished

• Black oxide coating

• Zinc / Nickel plating

• Custom finishes on request

Features:

• High wear resistance

• Corrosion protection

• Suitable for high-load & precision applications

Applications:

• Automotive & motorcycle parts

• CNC machinery components

• Hydraulic & pneumatic systems

• Industrial machinery assemblies

A004

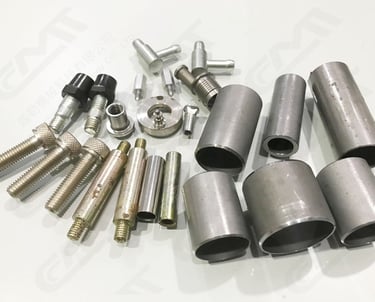

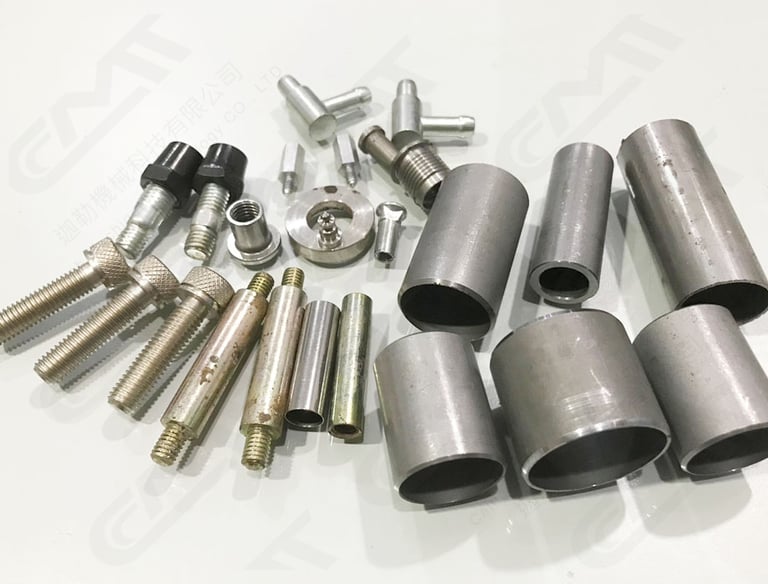

Product Name: Precision Metal Components Set Material Options

Material:

• Stainless Steel

• Carbon Steel

• Alloy Steel

• Aluminum

Surface Finish:

• Polished

• Zinc-plated

• Anodized (for aluminum parts)

Components Included:

• Threaded Bolts – Various lengths, diameters M6–M12, hex & knurled heads

• Spacer Tubes – Ø 12–25 mm, lengths 20–60 mm

• Sleeve Bushings – Ø 20–30 mm, lengths 30–50 mm, smooth finish

• Special Fittings & Adapters – Custom-machined shapes for assembly needs

Features:

• High precision machining (±0.02 mm tolerance)

• Corrosion & wear resistant

• Compatible with industrial machinery, fixtures & automotive assemblies

• Custom sizes available on request

Applications:

• CNC & fabrication fixtures

• Automotive assembly

• Industrial machinery

• Prototyping & mechanical projects

A005

A006

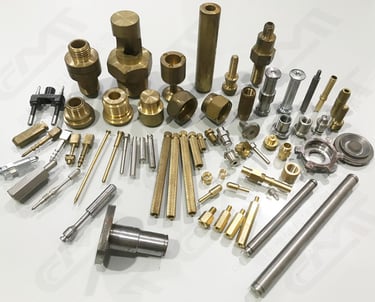

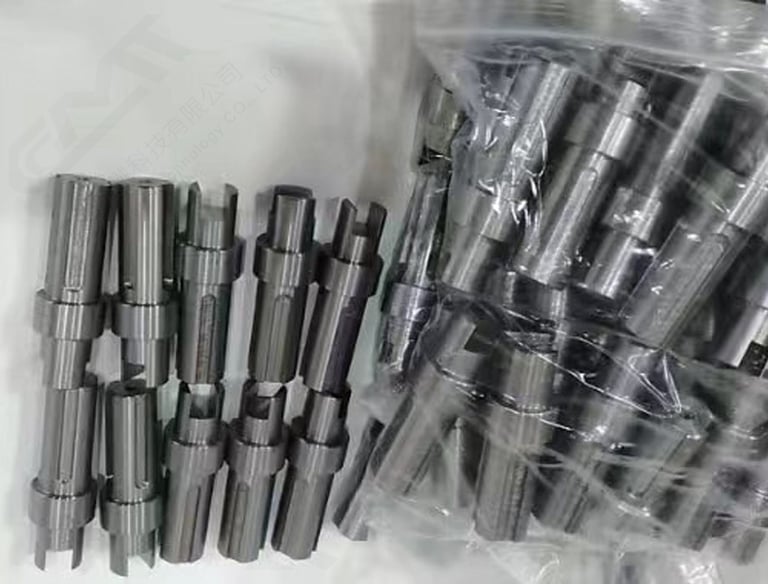

Product Name: Precision Machined Brass & Steel Components Set

Material:

• High-Grade Brass (CuZn)

• Stainless Steel (SS304 / SS316)

• Alloy Steel (on select components)

Surface Finish:

• Natural Brass Polished

• Stainless Steel Brushed / Polished

• Zinc / Chrome Plated (optional)

Components Included:

• Brass Fittings – Hexagonal, cylindrical, custom connectors

• Brass Rods & Pins – Ø 4–25 mm, precision turned

• Threaded Components – Internal & external, metric & imperial

• Spacer Bushings – Brass & steel, precision-machined

• Custom Adapters – Specialty shapes for assembly

• Machined Shafts – Stainless steel, precision-ground

• Lock & Retainer Components – Flat & circular types

Specifications:

• Tolerance: ±0.02 mm

• Thread Types: Metric (M3–M20), UNC/UNF available

• Length Range: 10–150 mm

• Diameter Range: 3–30 mm

Features:

• High corrosion resistance

• Excellent machinability & durability

• Designed for high-precision industrial use

• Custom fabrication available on request

Applications:

• Pneumatic & hydraulic systems

• Automotive assemblies

• CNC jigs & fixtures

• Electrical & mechanical connectors

• Prototyping & custom machinery

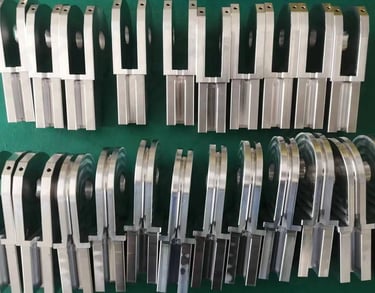

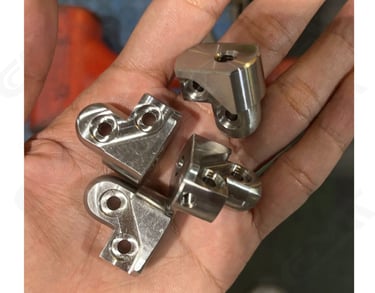

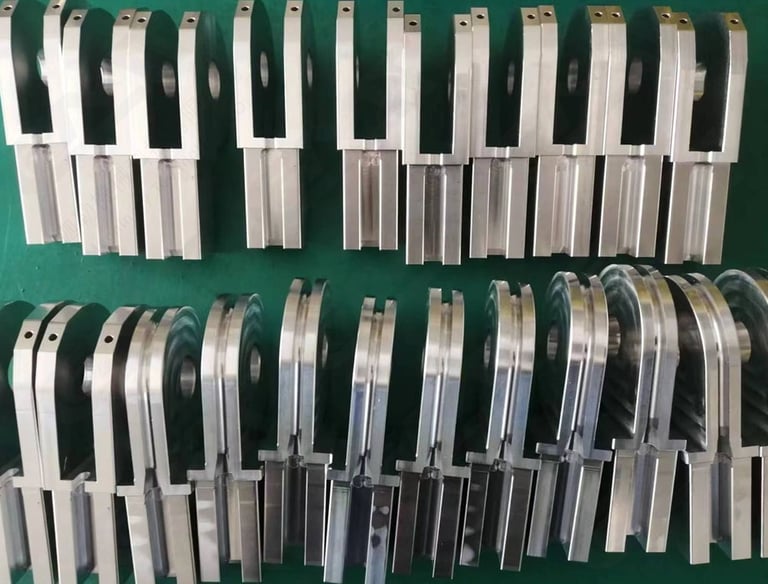

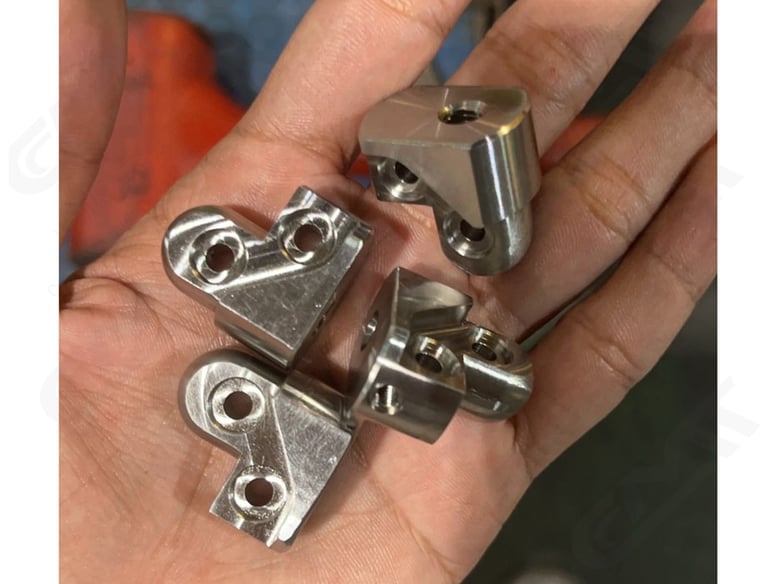

Product Name: Precision CNCMachined Aluminum Bracket Assemblies

Material:

• High-Strength Aluminum Alloy (6061-T6 / 7075-T6)

Surface Finish:

• CNC-milled with anodized or polished finish

• Deburred edges for smooth handling and safety

Specifications:

• Thickness: 8–15 mm (customizable)

• Length: 60–120 mm

• Width: 25–40 mm

• Mounting Hole Diameters: Ø 6– 12 mm

• Tolerance: ±0.02 mm

• Weight: Approx. 85–150 g/piece

Features:

• Lightweight yet high rigidity

• Precision-machined slots and holes for exact fit

• Corrosion and wear-resistant

• Custom dimensions and surface treatments available

Applications:

• Industrial automation equipment

• CNC machine fixtures

• Robotic arm assemblies

• Mechanical support structures

• Prototyping & custom machinery

A007

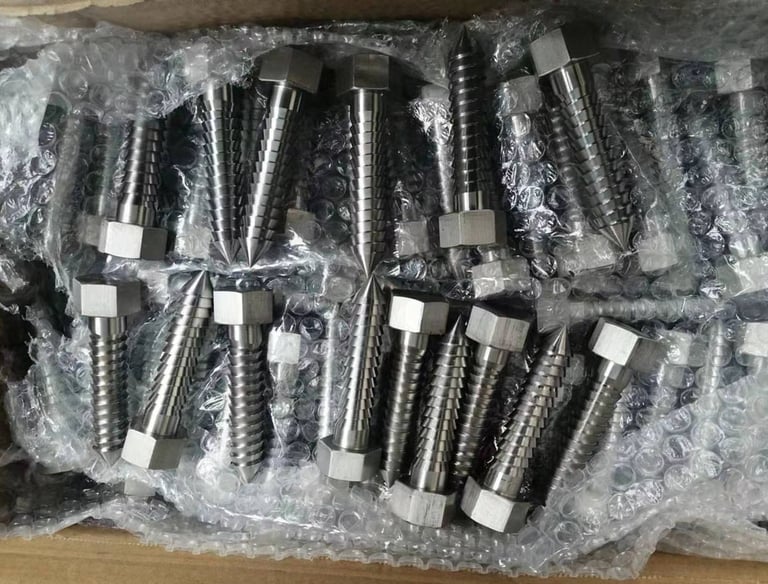

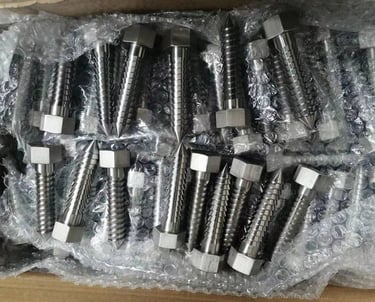

Hex Head Lag Screws (Stainless Steel)

Material:

• Stainless Steel (A2 / A4 grades)

• Optional: Carbon steel with zinc plating or hot-dip galvanized

Head Type:

• Hexagon head (for wrench or socket installation)

Thread Type:

• Coarse deep thread for wood, plastic, or wall plugs

• Self-tapping design

Dimensions Available:

• Diameter (D): M6 – M12 (1/4" – 1/2")

• Length (L): 30 mm – 200 mm

• Thread Pitch: As per DIN 571 standard

Standards:

• DIN 571 / ISO 7998 / ASME B18.2.1

Finish Options:

• Natural stainless steel

• Zinc plated

• Hot-dip galvanized

Features:

• High corrosion resistance

• Strong holding power in timber

• Suitable for outdoor and marine environments

Application:

• Heavy-duty wood construction

• Mounting metal to wood

• Outdoor furniture assembly

• Structural timber fixing

A008

A009

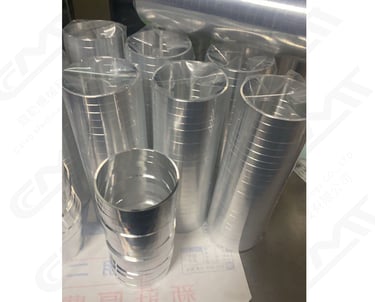

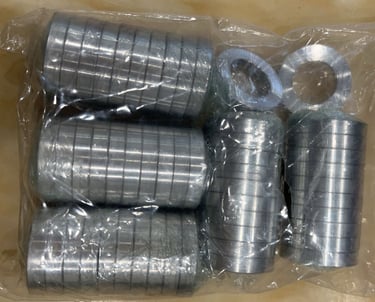

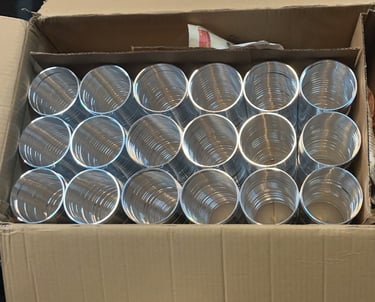

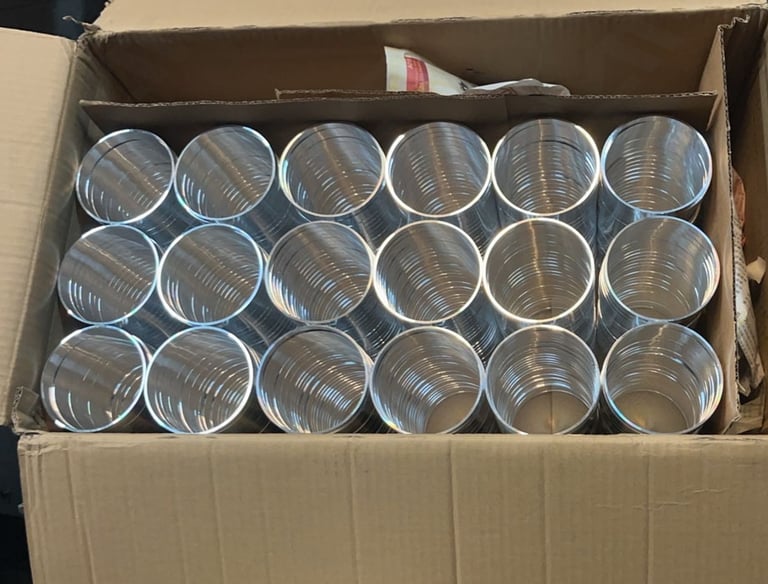

Aluminum Cylindrical Sleeves / Tubes

Material:

• Aluminum Alloy: 6061 / 6063 / 7075 (available)

Manufacturing Process:

• CNC precision cutting / turning

• Deburred edges

• Optional: polishing or anodizing

Dimensions:

• Outer Diameter (OD): 20 mm – 120 mm

• Inner Diameter (ID): As per customer requirement

• Length: 30 mm – 300 mm

• Wall Thickness: 1 mm – 10 mm

• Tolerance: ±0.02 mm (diameter), ±0.05 mm (length)

Surface Finish Options:

• Raw machined

• Polished

• Anodized (clear, black, colored)

• Brushed finish

Features:

• Lightweight with excellent strength-to-weight ratio

• High corrosion resistance

• Good machinability for secondary operations

• Suitable for structural and decorative uses

Applications:

• Aerospace and automotive parts

• Industrial machinery spacers

• Decorative architectural components

• Custom engineering projects

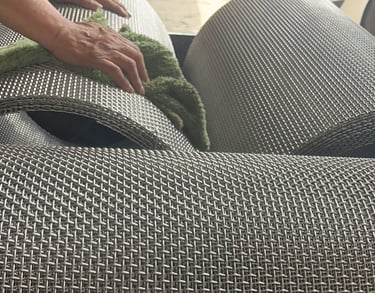

Stainless Steel Woven Mesh Rolls

Material:

• Stainless Steel: 304 / 316 / 316L (available)

Manufacturing Process:

• Precision weaving on automated looms

• Uniform wire tension control

• Deburred edges for safe handling

• Optional: passivation or polishing treatment

Dimensions:

• Roll Width: 500 mm – 2000 mm

• Roll Length: up to 30 meters (custom lengths available)

• Wire Diameter: 0.3 mm – 1.2 mm

• Mesh Opening Size: 1 mm – 10 mm (customizable)

• Tolerance: ±0.05 mm (wire diameter), ±2 mm (roll width)

Surface Finish Options:

• Mill finish (raw woven)

• Polished finish for enhanced appearance

• Passivated for improved corrosion resistance

Features:

• High tensile strength and durability

• Excellent corrosion and rust resistance

• Smooth and consistent weave pattern

• Easy to cut, shape, and fabricate

• Suitable for high-temperature applications

Applications:

• Industrial filtration and sieving

• Protective guarding and safety screens

• Architectural and decorative panels

• Ventilation grilles

• Food processing equipment screens

A010

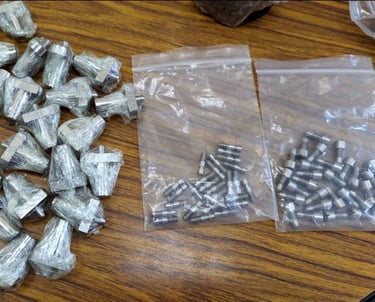

Tungsten Carbide Drill Buttons & Inserts

Material:

• Premium Tungsten Carbide (WCCo grade)

Manufacturing Process:

• Precision powder metallurgy sintering

• CNC grinding for accurate geometry

• Surface treatment for extended wear resistance

Dimensions:

• Drill Buttons: Diameter 6 mm – 20 mm, Height 8 mm – 25 mm

• Inserts: Diameter 4 mm – 12 mm, Length 8 mm – 30 mm

• Tolerance: ±0.02 mm (diameter), ±0.05 mm (length)

Hardness & Strength:

• Hardness: 89 – 93 HRA

• Transverse Rupture Strength (TRS): ≥ 2500 MPa

Surface Finish Options:

• Ground finish (standard)

• Polished finish (optional)

Features:

• Exceptional hardness and wear resistance

• High impact strength for demanding drilling conditions

• Corrosion and heat resistance

• Consistent dimensional accuracy

Application:

• Mining and quarry drill bits

• Rock drilling tools

• Down-the-hole (DTH) hammers

• Construction and tunneling equipment

• Geological exploration tools

A011

A012

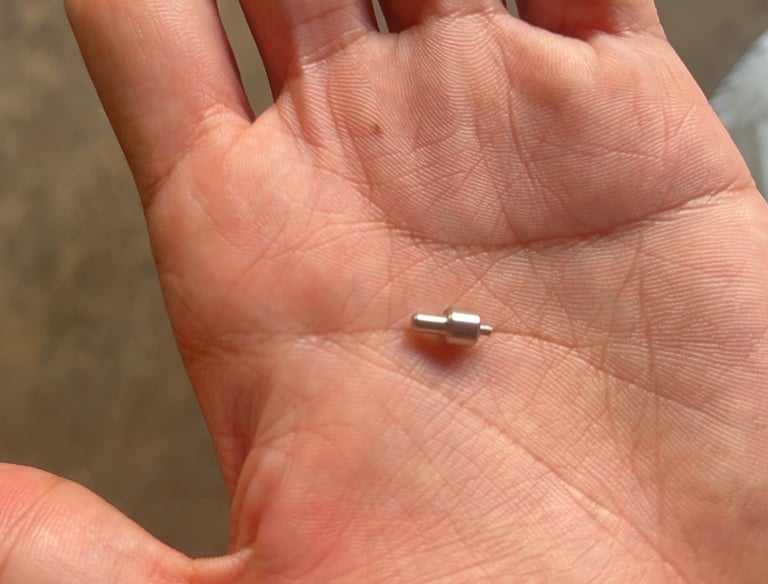

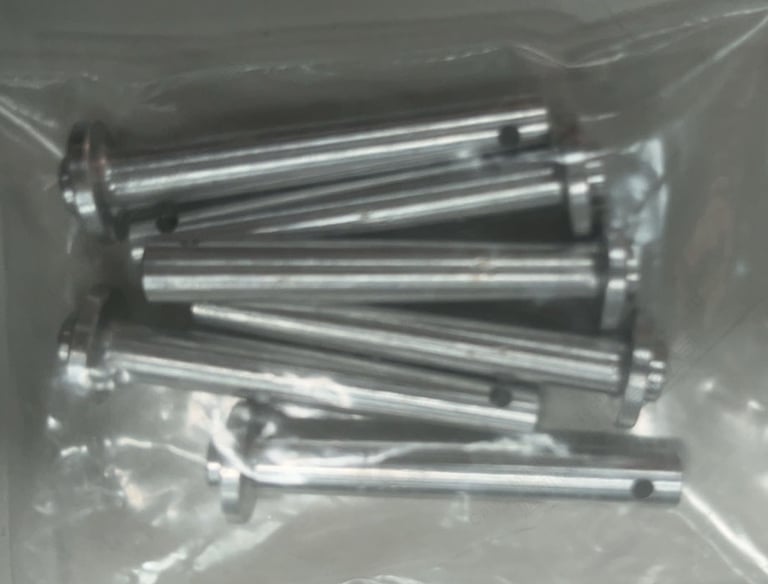

Precision Stainless Steel Dowel Pins

Material:

• Stainless Steel: 304 / 316 / 420 (available)

Manufacturing Process:

• CNC precision turning and centerless grinding

• Deburred for safe handling

• Optional: heat treatment for hardness improvement

Dimensions:

• Diameter: 1 mm – 6 mm

• Length: 3 mm – 30 mm

• Tolerance: ±0.005 mm (diameter), ±0.02 mm (length)

Hardness & Strength (optional heat treated)

• 420 SS: HRC 50–55

• 304 / 316 SS: Annealed condition unless specified

Surface Finish Options:

• Polished (standard)

• Passivated for enhanced corrosion resistance

Features:

• High dimensional precision for accurate assembly

• Corrosion resistance suitable for harsh environments

• Smooth finish reduces wear on mating parts

• Suitable for high-speed and high-load applications

Applications:

• Mechanical assemblies and jigs

• Precision alignment in tooling fixtures

• Electronic and micro-device manufacturing

• Aerospace and automotive component positioning

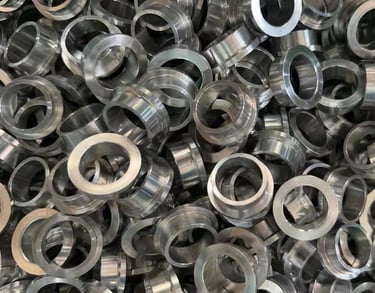

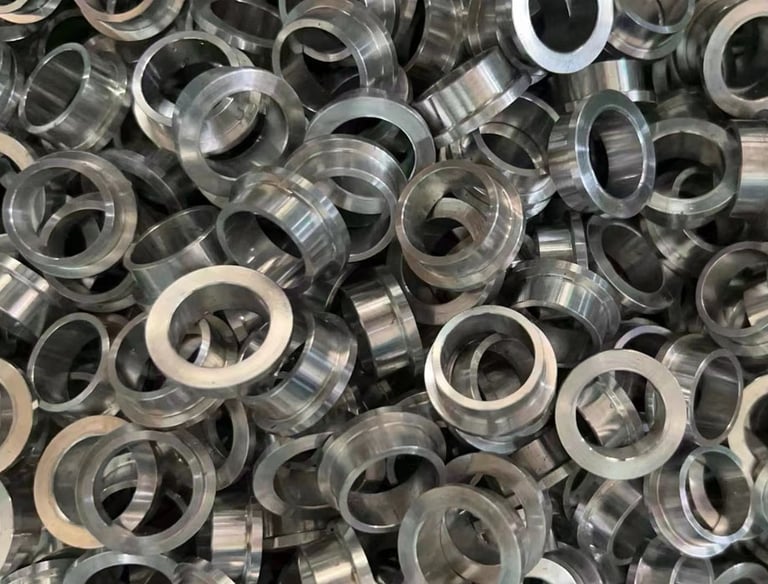

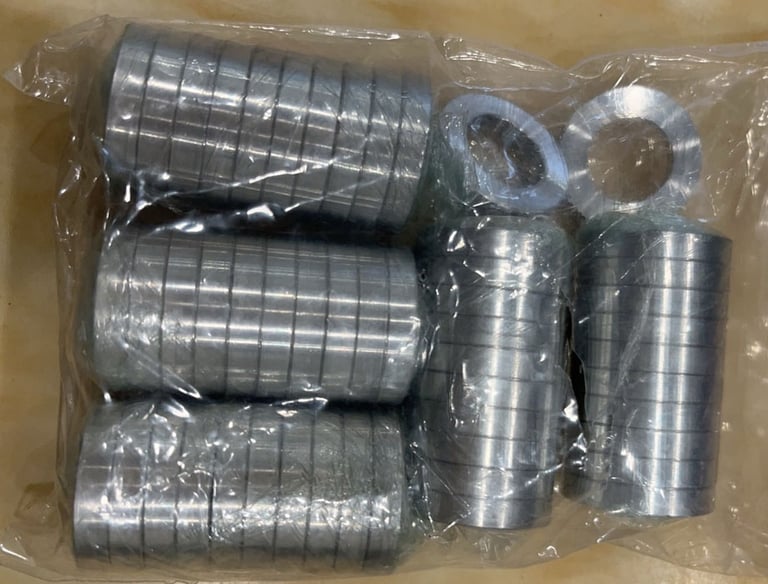

Stainless Steel Precision Bushings / Spacer Rings

Material:

• Stainless Steel: 304 / 316 / 410 (available)

Manufacturing Process:

• CNC precision turning and boring

• Deburred and chamfered edges

• Optional: grinding for highprecision fit

Dimensions:

• Outer Diameter (OD): 15 mm – 80 mm

• Inner Diameter (ID): As per customer requirement

• Length/Height: 10 mm – 50 mm

• Wall Thickness: 1 mm – 8 mm

• Tolerance: ±0.02 mm (diameter), ±0.05 mm (length)

Surface Finish Options:

• Raw machined finish

• Polished finish (Ra ≤ 0.8 μm)

• Passivated surface for enhanced corrosion resistance

• Electroplated (zinc, nickel) on request

Features:

• High wear and corrosion resistance

• Excellent dimensional stability

• Smooth edges for easy assembly

• Suitable for both static and rotational applications

Applications:

• Automotive suspension and steering components

• Industrial machinery spacers

• Mechanical couplings and shaft alignment

• Heavy equipment and agricultural machinery

• Custom mechanical assemblies

A013

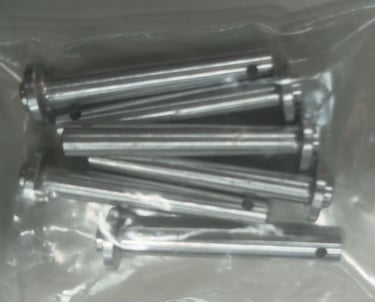

Stainless Steel Clevis Pins

Material:

• Stainless Steel: 304 / 316 (available)

Manufacturing Process:

• CNC precision machining

• Cold heading for head formation

• Deburred edges and slotting for cotter pin insertion

Dimensions:

• Pin Diameter: 4 mm – 20 mm

• Usable Length: 20 mm – 150 mm

• Head Diameter: As per DIN 1444 / ISO 2341 standards or custom

• Head Thickness: 2 mm – 8 mm

• Slot Width: 1 mm – 5 mm

• Tolerance: ±0.02 mm (diameter), ±0.05 mm (length)

Surface Finish Options:

• Raw machined finish

• Polished finish (Ra ≤ 0.8 μm)

• Passivated for corrosion resistance

Features:

• High tensile strength and durability

• Corrosion and rust resistant

• Precision slot for secure fastening with cotter pin

• Easy installation and removal

Application:

• Agricultural machinery linkages

• Automotive hinge and joint assemblies

• Construction equipment pins

• Marine and outdoor hardware

• General mechanical fastening systems

A014

A015

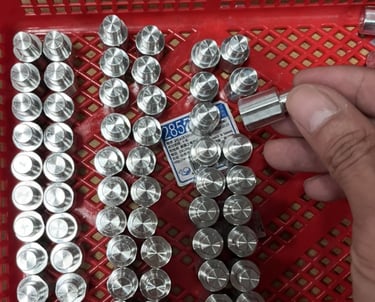

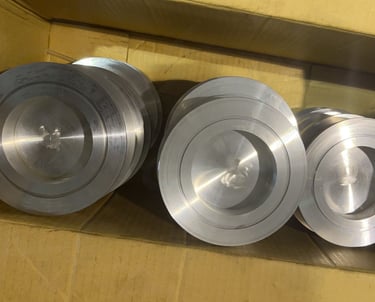

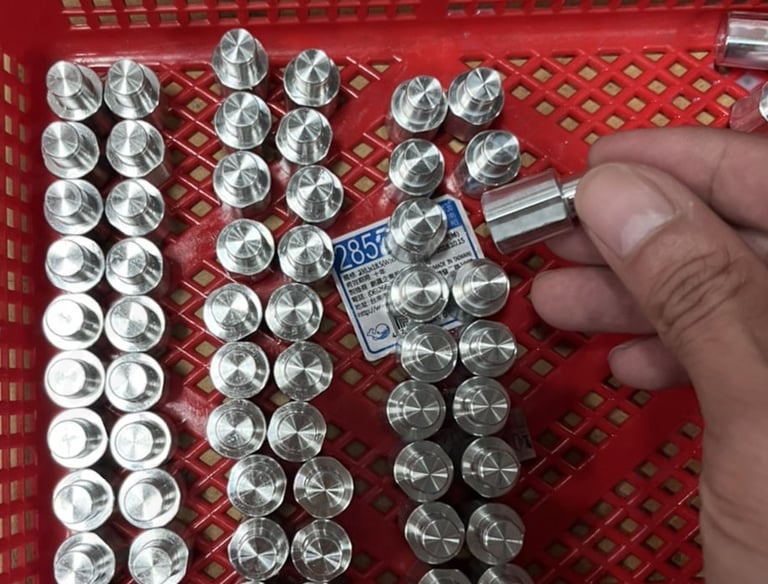

Stainless Steel Precision End Caps / Machined Plugs

Material:

• Stainless Steel: 304 / 316 / 303 (available)

Manufacturing Process:

• CNC precision turning and facing

• Chamfered edges for smooth handling

• Optional: knurling for grip enhancement

Dimensions:

• Outer Diameter (OD): 8 mm – 40 mm

• Overall Length: 10 mm – 50 mm

• Head Diameter: Slightly larger than body for flush seating

• Wall Thickness (if hollow): 1 mm – 5 mm

• Tolerance: ±0.02 mm (diameter), ±0.05 mm (length)

Surface Finish Options:

• Raw machined finish

• Mirror polish (Ra ≤ 0.4 μm)

• Brushed finish

• Passivated for enhanced corrosion resistance

Features:

• High wear and corrosion resistance

• Precision-machined for tight fit

• Smooth chamfered edges to prevent damage during installation

• Available in solid or hollow configuration

Applications:

• Protective end caps for shafts and rods

• Sealing plugs for mechanical housings

• Aesthetic finishing for exposed ends in furniture or equipment

• Industrial and marine hardware

• Custom mechanical closures

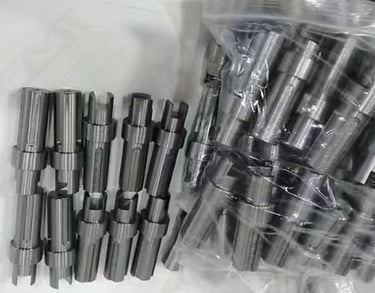

Stainless Steel Spline Shafts

Material:

• Stainless Steel: 304 / 316 / 420 (available)

Manufacturing Process:

• CNC precision turning and spline cutting

• Hobbing or milling for spline profiles

• Optional: heat treatment for enhanced hardness

• Deburred edges for safe handling

Dimensions:

• Outer Diameter (OD over splines): 10 mm – 40 mm

• Shaft Length: 30 mm – 150 mm

• Spline Profile: Involute / Straight-sided / Custom

• Number of Splines: 6 – 12 (customizable)

• Tolerance: ±0.02 mm (diameter), ±0.05 mm (length)

Surface Finish Options:

• Raw machined finish

• Polished finish (Ra ≤ 0.8 μm)

• Passivated for corrosion resistance

• Nitrided or hard-chrome plated for wear resistance

Features:

• High torque transmission capability

• Corrosion and wear resistant

• Precision spline geometry for accurate mating fit

• Suitable for high-load mechanical applications

Applications:

• Gearboxes and power transmission systems

• Industrial automation equipment

• Agricultural and construction machinery

• Automotive drive systems

• Custom engineering assemblies

A016

Aluminum Precision Spacer Rings / Bushings

Material:

• Aluminum Alloy: 6061 / 6063 / 7075 (available) Manufacturing Process

• CNC precision turning and boring

• Chamfered edges for smooth assembly

• Deburred for safe handling

Dimensions:

• Outer Diameter (OD): 20 mm – 60 mm

• Inner Diameter (ID): As per customer specification

• Height/Length: 5 mm – 20 mm

• Wall Thickness: 1 mm – 10 mm

• Tolerance: ±0.02 mm (diameter), ±0.05 mm (length)

Surface Finish Options:

• Raw machined finish

• Polished finish

• Anodized (clear, black, or custom colors)

• Brushed surface texture

Features:

• Lightweight with high strength-to-weight ratio

• Corrosion resistant

• Excellent machinability for custom modifications

• Smooth seating for mechanical or structural use

Application:

• Automotive and aerospace spacers

• Industrial machinery components

• Furniture and architectural fittings

• Robotics and automation assemblies

• Custom engineering projects

A018

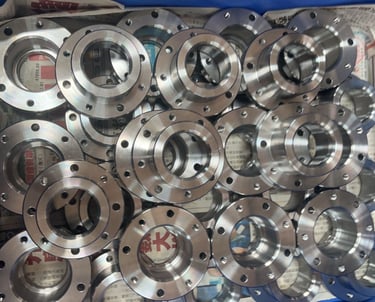

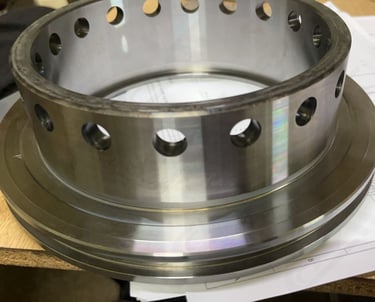

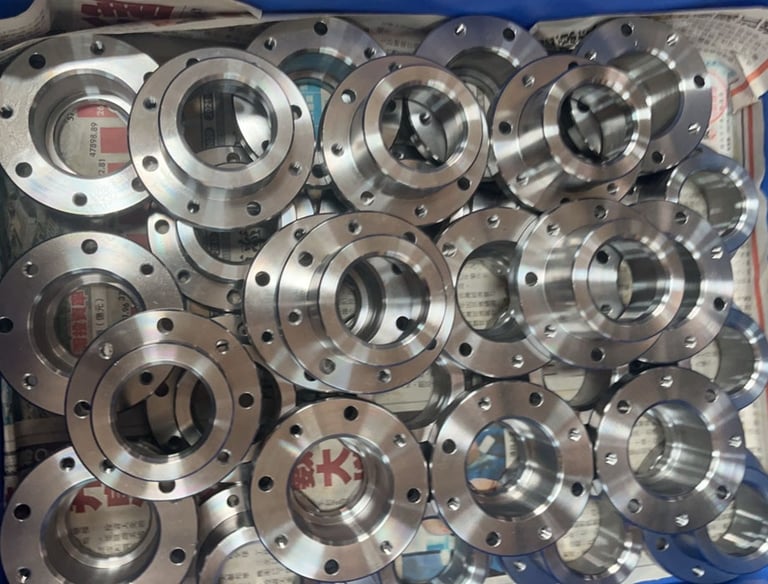

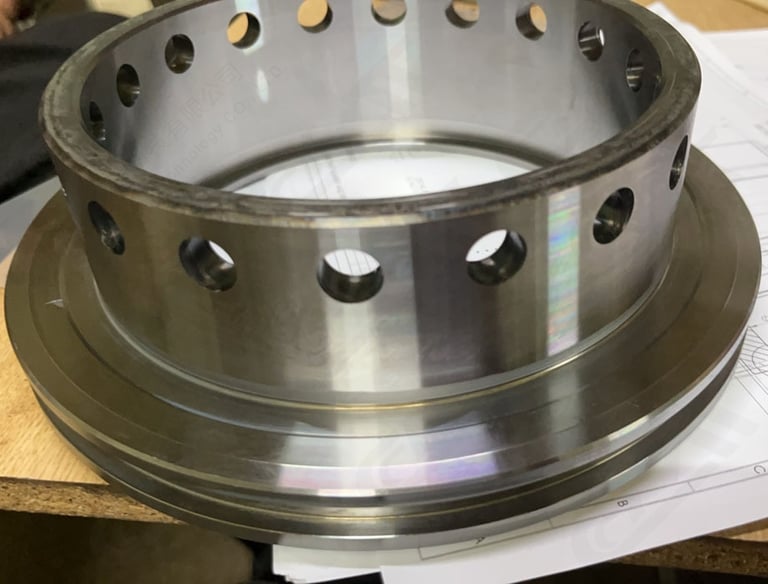

Stainless Steel Machined Flanges

Material:

• Stainless Steel: 304 / 316 / 316L (available) Manufacturing Process

• CNC precision turning and facing

• Drilling of bolt holes to pattern

• Deburred and chamfered edges

• Optional: surface grinding for flatness

Dimensions:

• Outer Diameter (OD): 50 mm – 200 mm

• Inner Diameter (ID / Bore): As per customer requirement

• Thickness: 5 mm – 20 mm

• Bolt Hole Quantity: 4 – 12 holes (customizable)

• Bolt Hole Diameter: 4 mm – 12 mm

• Bolt Circle Diameter (BCD): As per standard or custom specification

• Tolerance: ±0.05 mm (diameter), ±0.1 mm (bolt hole positions)

Surface Finish Options:

• Raw machined finish

• Polished (Ra ≤ 0.8 μm)

• Passivated for corrosion resistance

• Bead blasted for matte texture

Features:

• High corrosion and wear resistance

• Precision-machined bolt patterns for accurate assembly

• Suitable for high-pressure or high-strength applications

• Smooth sealing surfaces for gaskets or O-rings

Applications:

• Pipe and tube connections

• Pump and valve mounting

• Industrial and marine machinery

• Custom mechanical assemblies

• Aerospace and automotive flange systems

Steel Cylindrical Bushings & Sleeves

Material:

• Carbon Steel: C45 / 1020 / 1045

• Stainless Steel: 304 / 316 (available upon request)

Manufacturing Process:

• CNC precision turning and boring

• Optional: inner and outer diameter grinding for high tolerance

• Chamfered edges for ease of installation

• Deburred for safe handling

Dimensions:

• Outer Diameter (OD): 10 mm – 100 mm

• Inner Diameter (ID): As per customer requirement

• Length: 10 mm – 80 mm

• Wall Thickness: 1 mm – 10 mm

• Tolerance: ±0.02 mm (diameter), ±0.05 mm (length)

Surface Finish Options:

• Raw machined finish

• Polished finish (Ra ≤ 0.8 μm)

• Zinc-plated for corrosion resistance

• Phosphate coating for wear protection

Features:

• High strength and durability

• Suitable for heavy-duty mechanical use

• Precision inner bore for accurate shaft fit

• Available in multiple sizes for various applications

Applications:

• Automotive suspension and steering components

• Industrial machinery spacers and bushings

• Hydraulic and pneumatic cylinder components

• Agricultural machinery

• Custom engineering projects

A017

A019

A020

A021

Stainless Steel Wire Mesh Filter Discs & Rings

Material:

• Stainless Steel: 304 / 316 / 316L

• Mesh: Woven stainless steel wire cloth

Manufacturing Process:

• Precision stamping or laser cutting for mesh and ring shapes

• Mesh crimped or sintered into frame (optional)

• Deburred edges for safe handling

• Flatness inspection for sealing integrity

Dimensions:

• Outer Diameter (OD): 20 mm – 300 mm

• Inner Diameter (ID): As per customer requirement

• Mesh Aperture: 10 μm – 2000 μm Frame

• Thickness: 0.5 mm – 5 mm

• Tolerance: ±0.1 mm (diameter)

Surface Finish Options:

• Natural stainless finish

• Electropolished for enhanced corrosion resistance

• Passivated surface treatment

Features:

• High corrosion and temperature resistance

• Fine filtration with consistent mesh opening size

• Rigid frame for durability and stable shape

• Easy to clean and reusable

Applications:

• Liquid and gas filtration systems

• Chemical and pharmaceutical processing

• Food and beverage manufacturing

• Hydraulic and pneumatic systems

• Screening in high-temperature environments

Aluminum Cylindrical Sleeves / Tubes

Material:

• Aluminum Alloy: 6061 / 6063 / 7075 (available)

Manufacturing Process:

• CNC precision turning and boring

• Chamfered inner and outer edges

• Deburred for smooth handling

• Optional: polishing or anodizing

Dimensions:

• Outer Diameter (OD): 40 mm – 120 mm

• Inner Diameter (ID): As per customer specification

• Length: 50 mm – 200 mm

• Wall Thickness: 2 mm – 10 mm

• Tolerance: ±0.02 mm (diameter), ±0.05 mm (length)

Surface Finish Options:

• Raw machined finish

• Polished finish

• Anodized (clear, black, or custom colors)

• Brushed finish

Features:

• Lightweight with excellent strength-to-weight ratio

• Corrosion-resistant for longterm performance

• Smooth bore for tight tolerance fits

• Suitable for both structural and decorative purposes

Applications:

• Aerospace and automotive components

• Industrial machinery sleeves and spacers

• Marine hardware Decorative architectural elements

• Custom mechanical assemblies

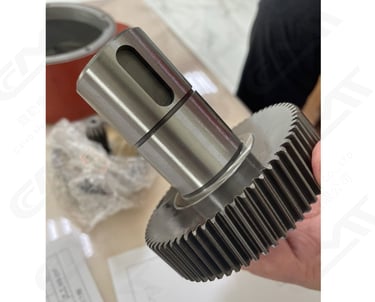

Steel Spur Gears

Material:

• Alloy Steel: 20CrMnTi / 40Cr

• Stainless Steel: 304 / 316 (available upon request)

Manufacturing Process:

• CNC precision turning for bore and outer diameter

• Gear hobbing or shaping for tooth profile

• Heat treatment (carburizing, quenching, tempering) for wear resistance

• Deburred for smooth handling

Dimensions:

• Outer Diameter (OD): 40 mm – 150 mm

• Bore Diameter: As per customer requirement (keyway optional)

• Face Width: 10 mm – 40 mm

• Module: 1.5 – 6 (customizable)

• Number of Teeth: As per design specification

• Tolerance: ±0.02 mm (bore), ±0.05 mm (OD)

Surface Finish Options:

• Raw machined finish

• Ground tooth finish (Ra ≤ 0.8 μm)

• Black oxide coating for corrosion resistance

• Zinc or nickel plating upon request

Features:

• High torque transmission capability

• Precision-cut tooth profiles for smooth operation

• Heat-treated for durability and long service life

• Compatible with standard and custom gear assemblies

Applications:

• Gearboxes and transmission systems

• Industrial machinery drive systems

• Agricultural and construction equipment

• Automotive powertrains

• Custom mechanical assemblies

A022

A023

A024

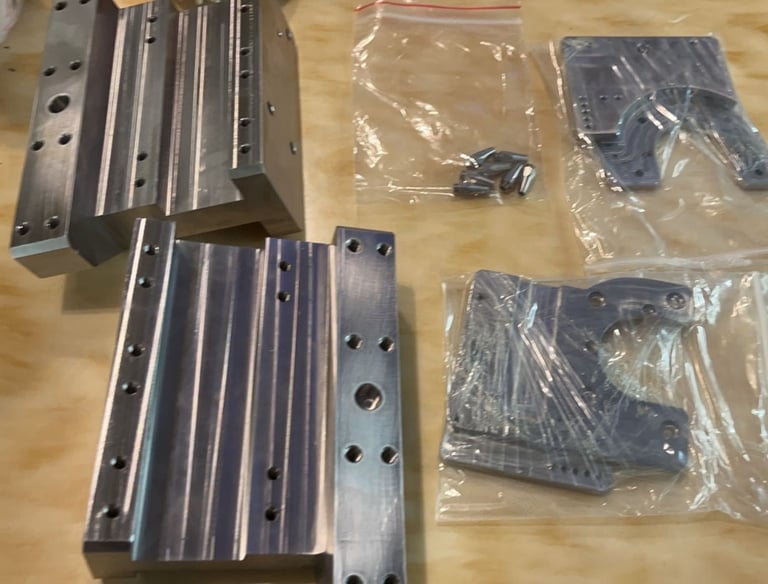

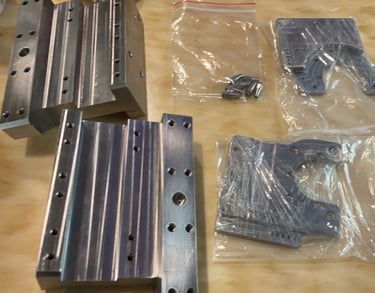

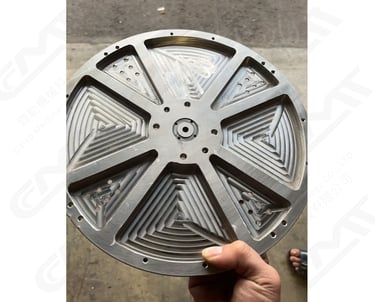

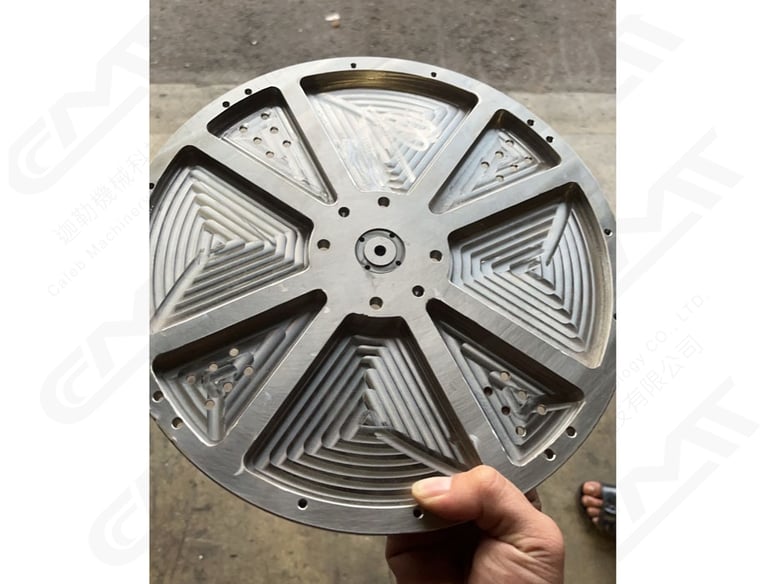

Aluminum CNC Machined Base Plates & Mounting Brackets

Material:

• Aluminum Alloy: 6061-T6 / 7075-T6

Manufacturing Process:

• CNC milling and drilling for high dimensional accuracy

• Chamfered edges for safe handling

• Threaded and counterbored holes as per design

• Optional surface grinding for flatness

Dimensions:

• Base Plate Size: 100 × 150 mm – 200 × 400 mm

• Thickness: 8 mm – 25 mm

• Mounting Bracket Size: Custom shapes per application

• Hole Patterns: As per customer specification

• Tolerance: ±0.02 mm (machined features), ±0.05 mm (overall size)

Surface Finish Options:

• Raw machined finish

• Anodized (clear, black, or custom colors)

• Bead blasted for matte texture

• Polished surface finish

Features:

• Lightweight yet rigid structure

• High corrosion resistance

• Precision-machined for accurate mounting alignment

• Multiple hole configurations for flexible assembly options

Applications:

• CNC machine base frames

• Automation equipment mounting systems

• Robotic assembly fixtures

• Industrial machinery supports

• Custom mechanical structures

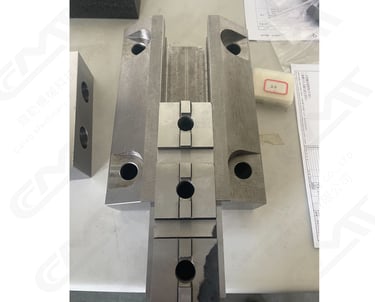

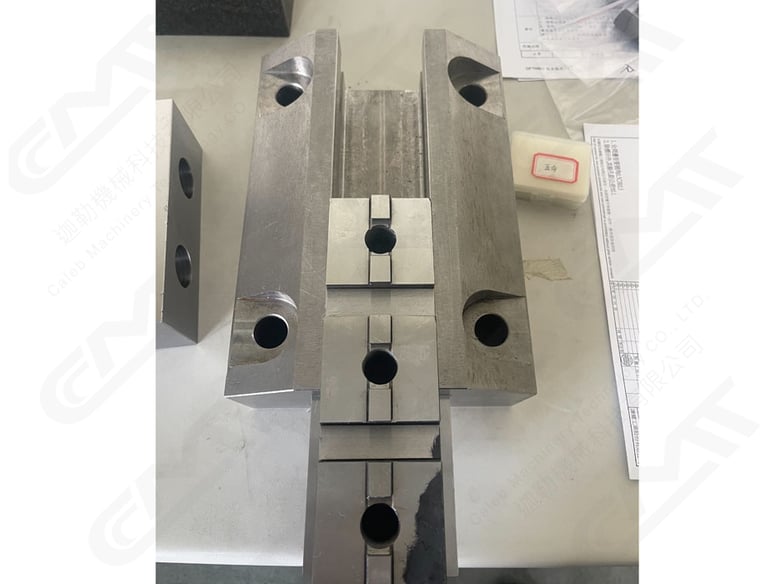

Precision Machined Steel Clamping Jaws

Material:

• Tool Steel: SKD11 / H13 / D2

• Hardened Alloy Steel (as per application)

Manufacturing Process:

• CNC milling and drilling for high precision

• Heat treatment for hardness and wear resistance

• Surface grinding for flatness and parallelism

• Chamfered edges for safe handling

Dimensions:

• Length: 80 mm – 300 mm

• Width: 20 mm – 60 mm

• Height: 20 mm – 50 mm Bore

• Diameter: As per mounting requirement

• Mounting Hole Size & Pattern: Customizable

• Tolerance: ±0.01 mm (critical dimensions)

Surface Finish Options:

• Ground finish (Ra ≤ 0.8 μm)

• Black oxide coating for corrosion protection

• Nitriding for surface hardness

• Chrome plating (on request)

Features:

• High clamping strength and rigidity

• Precision-machined for perfect alignment

• Wear-resistant for extended service life

• Suitable for heavy-duty industrial applications

Applications:

• CNC machining fixtures

• Hydraulic and pneumatic clamping systems

• Workholding for milling, turning, and grinding

• Molding and die casting tools

• Custom industrial assembly jigs

Steel Spur Gear with Integrated Shaft

Material:

• Alloy Steel: 20CrMnTi / 40Cr / 4140

• Stainless Steel: 304 / 316 (available upon request)

Manufacturing Process:

• CNC precision turning for shaft and bore

• Gear hobbing for tooth profile

• Keyway broaching or milling

• Heat treatment (carburizing, quenching, tempering) for high surface hardness

• Deburred and precision ground for fit and finish

Dimensions:

• Gear Outer Diameter (OD): 50 mm – 200 mm

• Shaft Diameter: As per application requirement

• Shaft Length: 50 mm – 250 mm

• Face Width: 10 mm – 40 mm

• Module: 1.5 – 6 (customizable)

• Number of Teeth: As per design specification

• Tolerance: ±0.02 mm (shaft & bore), ±0.05 mm (gear OD)

Surface Finish Options:

• Raw machined finish

• Tooth grinding for smooth operation (Ra ≤ 0.8 μm)

• Black oxide coating for corrosion resistance

• Hard chrome plating (on request)

Features:

• Integrated shaft for compact and rigid design

• High torque transmission capability

• Precision tooth geometry for reduced noise and vibration

• Wear and corrosion resistant

Applications:

• Gearboxes and transmission systems

• Industrial machinery drive assemblies

• Agricultural and construction equipment

• Automotive powertrains

• Custom mechanical engineering projects

A025

A026

A027

Precision CNC Machined Stainless Steel Corner Bracket

Material:

• Stainless Steel: SS304 / SS316 (optional)

Manufacturing Process:

• CNC milling for precise geometric accuracy

• Drilling and countersinking for fastener compatibility

• Deburring and polishing for smooth edges and corrosion resistance

Dimensions:

• Length: 20 mm – 40 mm

• Width: 15 mm – 25 mm

• Thickness: 8 mm – 12 mm

• Hole Diameter: 3 mm – 6 mm (customizable)

• Tolerance: ±0.02 mm

Surface Finish Options:

• Polished stainless steel

• Satin brushed finish

• Passivated for enhanced corrosion resistance

Features:

• High-strength corner mounting component

• Dual mounting holes for secure fastening

• Corrosion and wear resistant

• Compact design for space-constrained assemblies

Applications:

• Precision machinery mounting

• Aerospace and marine equipment brackets

• Custom fixtures and jigs

• Robotics and automation structural supports

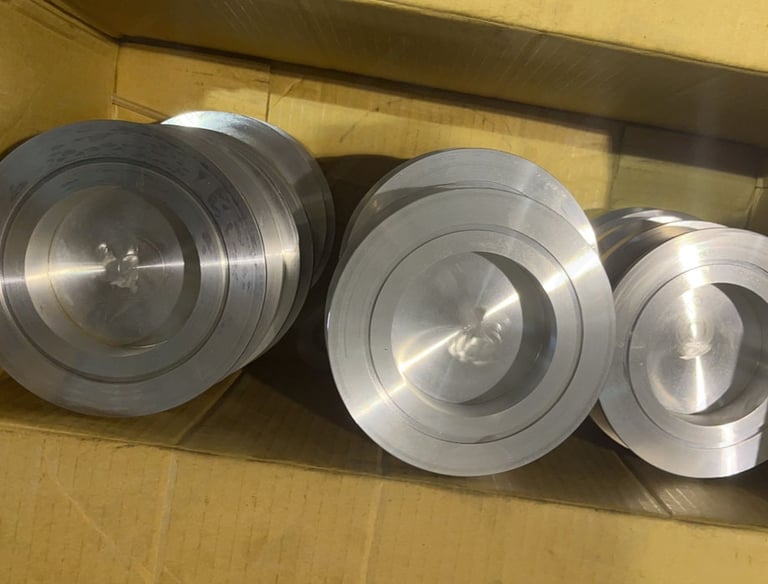

Aluminum CNC Machined Discs / Blanks

Material:

• Aluminum Alloy: 6061 / 6063 / 7075 (available)

Manufacturing Process:

• CNC turning for precise diameter and face flatness

• Center boring or recess machining (optional)

• Deburred edges for safe handling

• Optional polishing or anodizing

Dimensions:

• Outer Diameter (OD): 50 mm – 300 mm

• Thickness: 10 mm – 50 mm

• Center Bore: As per customer requirement

• Recess Depth: Customizable

• Tolerance: ±0.02 mm (diameter), ±0.05 mm (thickness)

Surface Finish Options:

• Raw machined finish

• Polished finish

• Anodized (clear, black, colored)

• Brushed finish

Features:

• Lightweight yet strong

• High corrosion resistance

• Excellent machinability for secondary operations

• Precision flat faces for accurate assembly

Applications:

• Industrial machinery components

• Flange and base plate manufacturing

• Aerospace and automotive prototypes

• Custom mechanical engineering projects

Aluminum CNC Machined Circular Plate with Pocketing

Material:

• Aluminum Alloy: 6061-T6 / 7075-T6 (available)

Manufacturing Process:

• CNC milling and turning for precision diameter and flatness

• Pocket milling for weight reduction and design geometry

• Drilled and countersunk mounting holes

• Deburred and chamfered edges for handling safety

Dimensions:

• Outer Diameter (OD): 150 mm – 400 mm

• Thickness: 5 mm – 20 mm

• Pocket Depth: 1 mm – 8 mm

• Mounting Hole Quantity: As per customer design

• Tolerance: ±0.02 mm (diameter), ±0.05 mm (thickness)

Surface Finish Options:

• Raw machined finish

• Anodized (clear, black, or custom colors)

• Brushed surface texture

• Polished finish (Ra ≤ 0.8 μm)

Features:

• Lightweight design with structural strength

• High corrosion resistance

• Precision mounting hole pattern for accurate assembly

• Pocketed design for reduced weight without compromising rigidity

Applications:

• Robotic and automation equipment bases

• Aerospace and UAV components

• Rotational machinery discs

• Custom industrial fixtures and assemblies

A028

A029

A030

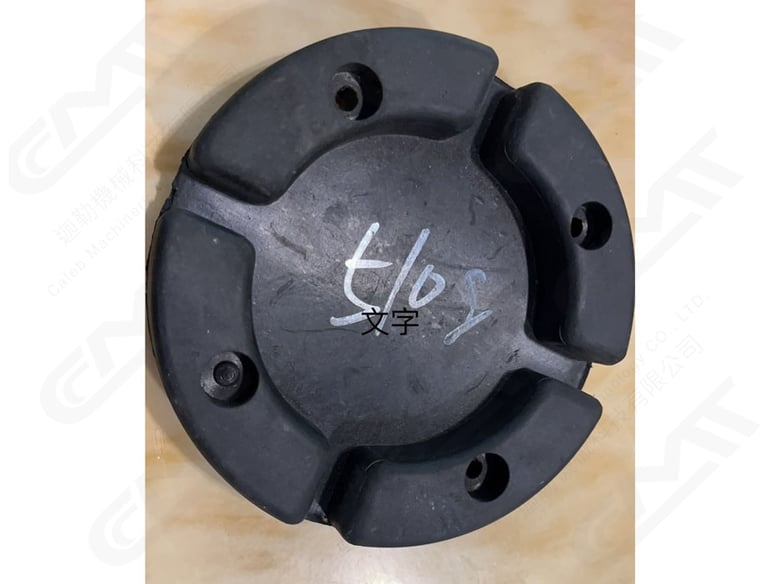

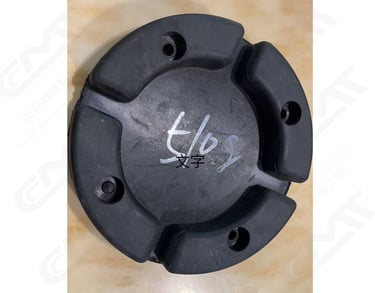

Molded Rubber Coupling Hub Cover

Material:

• High-strength molded industrial rubber (NBR / SBR)

• Optional polyurethane elastomer for higher abrasion resistance

Manufacturing Process:

• Precision compression molding

• Post-cure heat treatment for improved elasticity and durability

Dimensions:

• Outer Diameter: 100 mm – 160 mm

• Thickness: 25 mm – 40 mm Mounting

• Holes: 3–4 holes, Ø8 mm – Ø12 mm

• Tolerance: ±0.5 mm

Surface Finish Options:

• Molded matte finish

• Mold parting lines deburred

Features:

• Protects coupling hubs and reduces wear

• Excellent vibration damping and shock absorption

• Resistant to oil, grease, and mild chemicals

• Lightweight, easy to install and replace

Applications:

• Power transmission couplings

• Motor–gearbox connections

• Industrial pumps and compressors

• Heavy machinery drive systems

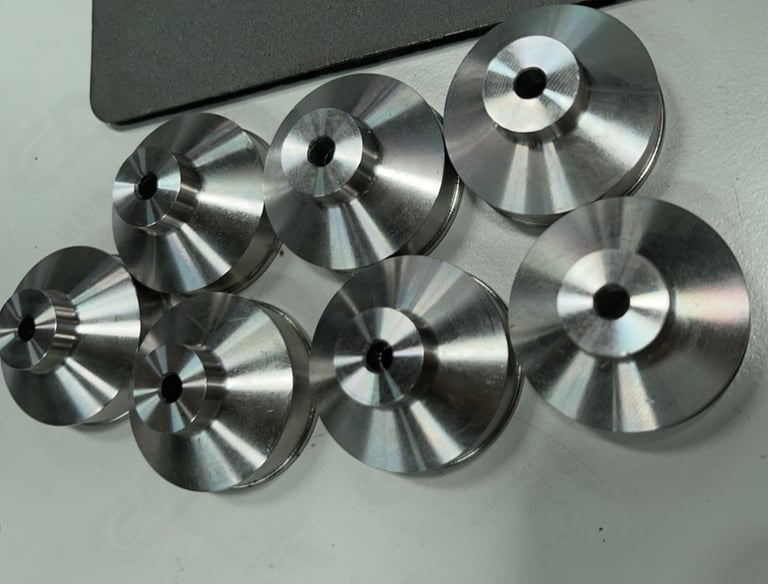

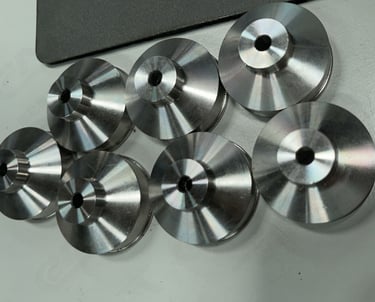

Precision CNC Turned Conical Spacer / Washer

Material:

• Stainless Steel: SS304 / SS316

• Aluminum Alloy: 6061-T6 (optional)

Manufacturing Process:

• CNC turning with high-precision lathe

• Center hole drilling and chamfering

• Fine surface polishing for low friction and aesthetic appeal

Dimensions:

• Outer Diameter: 30 mm – 60 mm

• Inner Diameter: 6 mm – 12 mm

• Height: 8 mm – 15 mm Conical Slope

• Angle: 20° – 40° (customizable)

• Tolerance: ±0.02 mm

Surface Finish Options:

• Machined finish (Ra ≤ 1.6 µm)

• Anodized (for aluminum)

• Passivated (for stainless steel)

Features:

• High-strength conical profile for precise load distribution

• Corrosion and wear resistant

• Lightweight and durable

• Suitable for high-load and alignment applications

Applications:

• Mechanical assemblies requiring angular seating

• Bearing housings and shaft supports

• Aerospace and automotive components

• Custom machinery and jigs

Precision Machined Flange with Radial Bolt Holes

Material:

• Alloy Steel: AISI 4140 / 4340 – hardened and tempered

• Stainless Steel: SS304 / SS316 (optional)

Manufacturing Process:

• CNC turning for outer/inner diameters and stepped profile

• CNC drilling for radial bolt holes

• Surface grinding and polishing

• Deburring for all edges

Dimensions:

• Outer Diameter: 180 mm – 300 mm

• Inner Diameter: 120 mm – 200 mm

• Height: 60 mm – 100 mm

• Bolt Holes: 12–16 holes, Ø10 mm – Ø14 mm equally spaced

• Tolerance: ±0.02 mm

Surface Finish Options:

• Machined finish (Ra ≤ 1.6 µm)

• Chrome plating (optional)

• Passivation (optional)

Features:

• High concentricity for precise alignment

• Multiple bolt holes for uniform load distribution

• High wear and corrosion resistance

• Heavy-duty construction for high torque environments

Applications:

• Gearbox assemblies

• Heavy machinery mounting interfaces

• Aerospace and marine drive systems

• Industrial coupling and rotor assemblies
