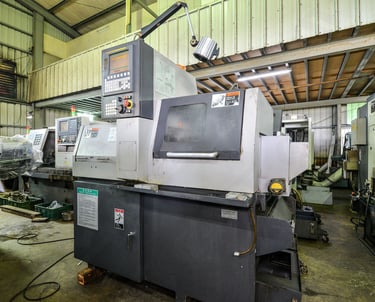

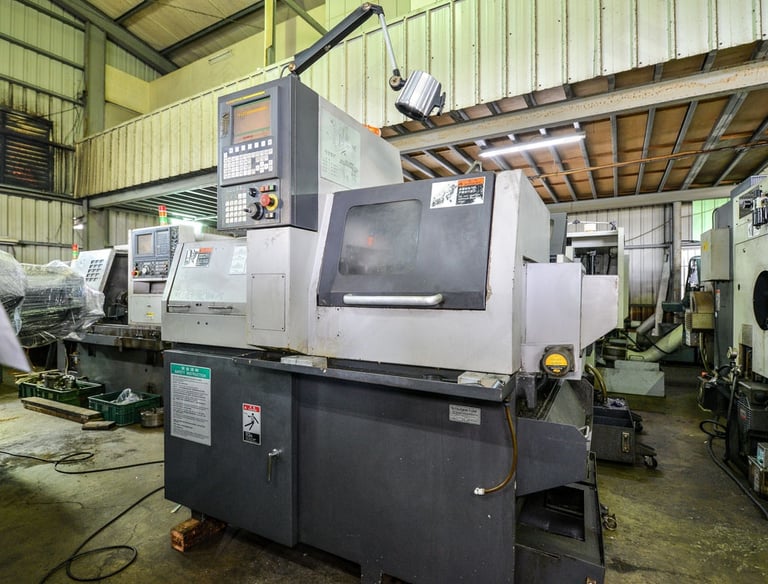

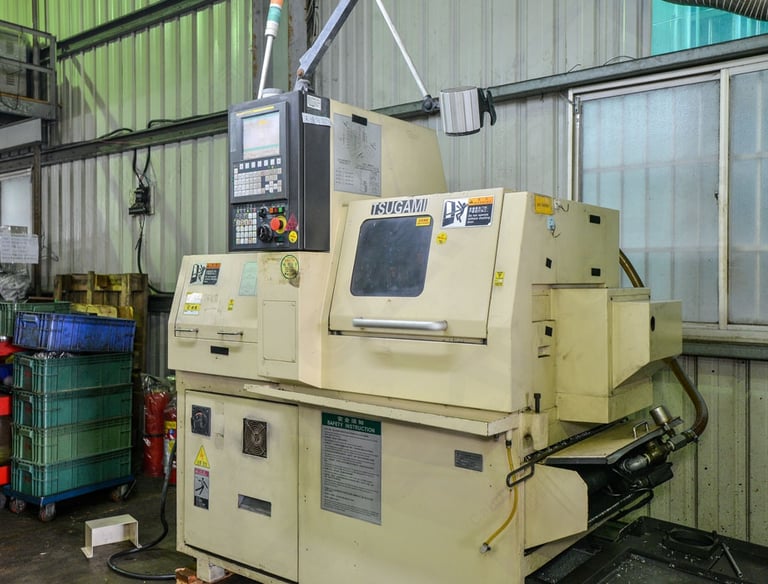

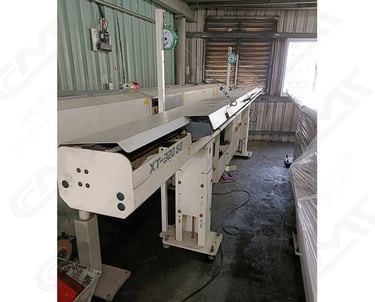

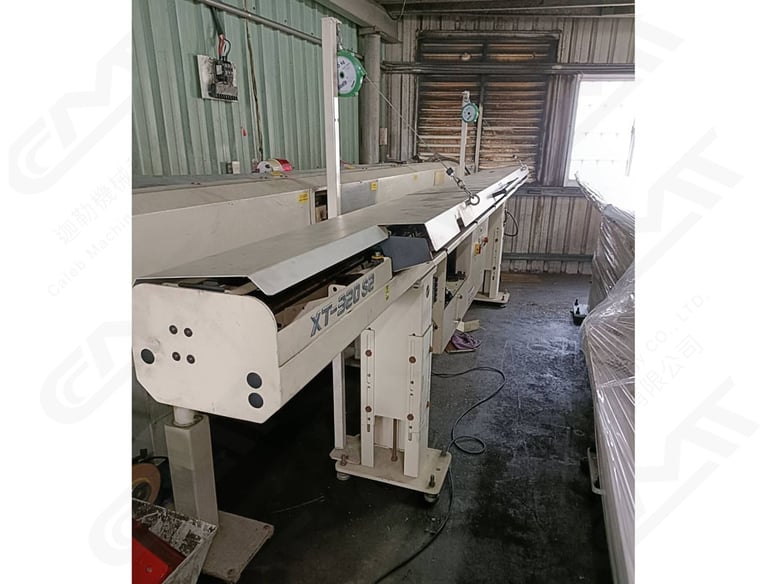

AUTOFEEDER

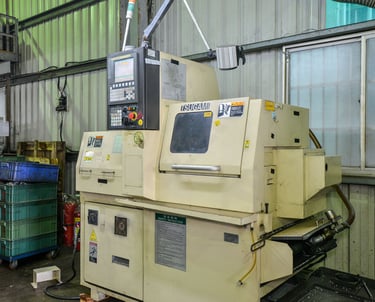

BO-204

General Technical Specifications:

• Machine Type: Automatic Bar Feeder

• Supported Bar Diameter: approx. 4 – 20

• mm

• Maximum Bar Length: approx. 3,200 mm

• Material Types: Steel, Aluminum, Brass,

• and other round metal materials

• Bar Pushing System: Servo motor with

• variable speed control

• Feeding Speed: up to approx. 1,000

• mm/sec

• Control System: Compatible with

• various CNC lathe brands (via standard

• interface)

• Power Requirement: approx. 1.0 kW

• Compressed Air Requirement: approx.

• 0.5 – 0.6 MPa

• Bar Center Height: approx. 850 – 1,200

• mm (adjustable)

• Machine Dimensions: approx. 4,200 ×

• 650 × 1,400 mm

• Machine Weight: approx. 750 kg

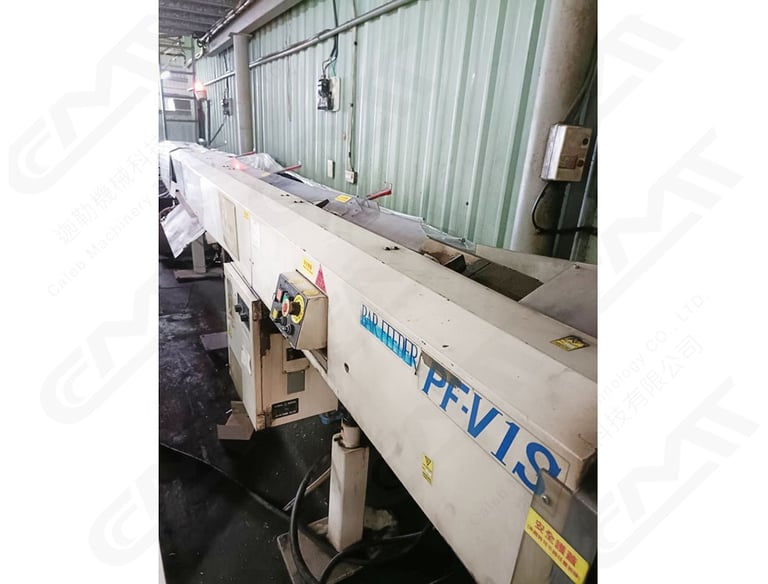

BND-20

General Technical Specifications:

• Machine Type: Automatic Bar Feeder

• Maximum Bar Length: approx. 3,200 mm

• Bar Diameter: approx. 4 – 20 mm

• Feeding Speed: up to 1,000 mm/sec

• Drive System: Servo motor

• Control System: CNC interface (compatible

• with various CNC lathe brands)

• Power Requirement: approx. 0.5 – 1.5 kW

• Air Pressure Requirement: approx. 0.5 MPa

• Machine Dimensions: approx. 4,200 × 600 ×

• 1,300 mm

• Machine Weight: approx. 600 kg

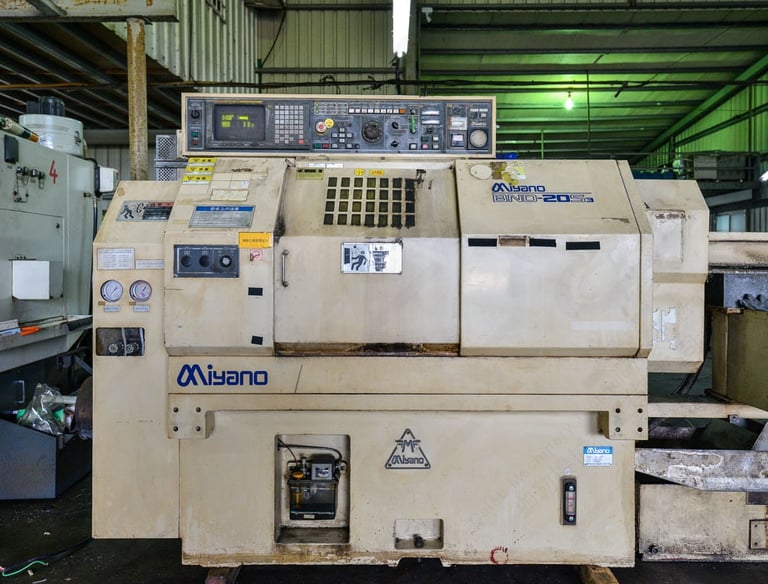

CNC LATHE MACHINE

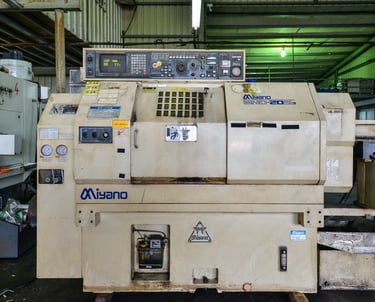

BND-20S

General Technical Specifications :

Capacity

• Swing over bed: N/A (compact bar-type lathe)

• Swing over carriage: N/A

• Between centers: Not applicable – bar machine

• Maximum turning diameter: 20 mm

• Standard turning diameter: Up to 20 mm (small-diameter precision work)

• Bar capacity (main): 20 mm

Axis Travels

• X-axis (cross): Approx. 80 mm

• Z-axis (longitudinal): Approx. 180 mm

• B-axis (sub-spindle): Not available on standard BND-20S

Main Spindle

• Maximum speed: 170 – 5,000 rpm (spindle drive capable of ~6,500 rpm)

• Spindle nose: Standard collet chuck system

• Spindle bore: Approx. 20 mm

• Inner bearing diameter: Not specified

Live Turret (Turret Spindle)

• Maximum speed: Not applicable (no live tooling on standard model)

• Tool type: Standard turret

• Number of tools: 8–12 positions (depending on configuration)

• Tool shank size: 20 mm

• Max. boring bar diameter: 25 mm

• Tool-to-tool change time: Approx. 0.5 sec (including indexing)

Feed Rates & Motors

• Rapid feedrate: Up to 20 m/min (approx.)

• Jog feedrate: ~6,000 mm/min

• Spindle motor: Approx. 7.5 HP (5.5 kW)

• Live-spindle motor: Not applicable unless equipped with live tooling option

• Feed servo motors: 1.8 kW × 2 axes

Additional Features

• Controller options: FANUC 21T

• Power requirement: Approx. 10–15 kVA

Dimensions & Weight

• Footprint: Compact – ideal for small workshops

• Net weight (with standard accessories): Approx. 2,500–3,000 kg

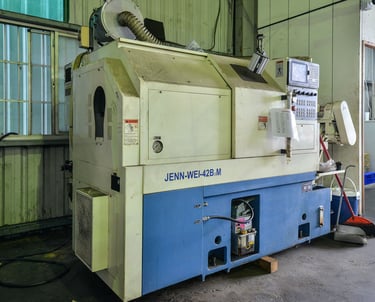

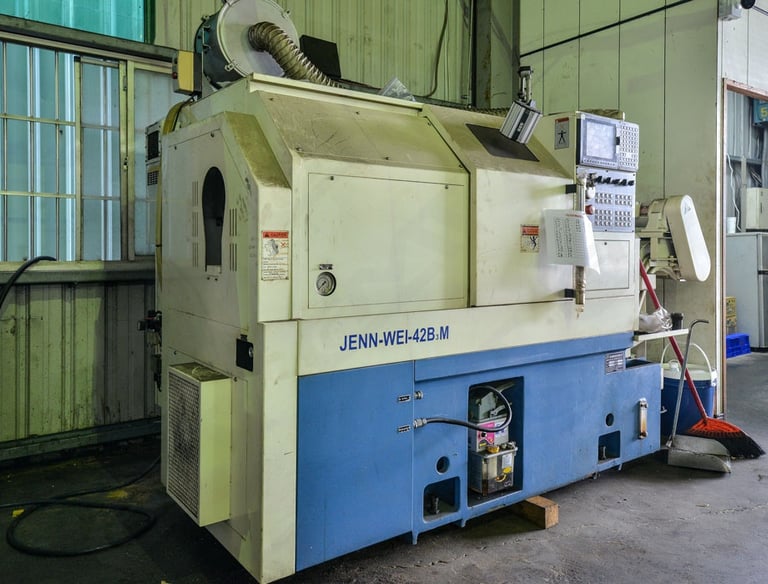

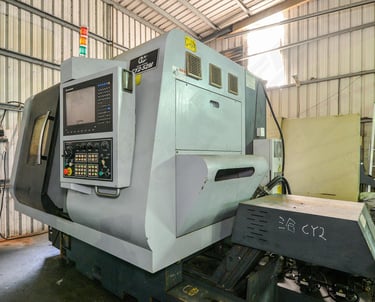

CNC42M

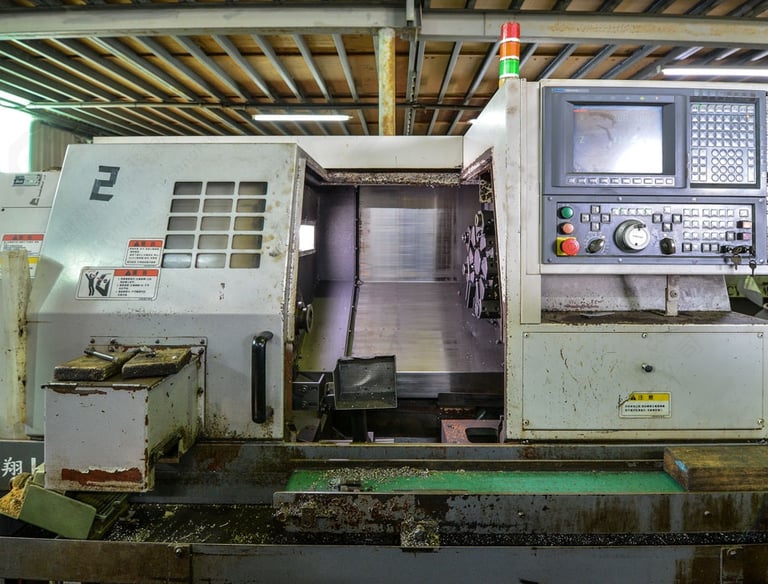

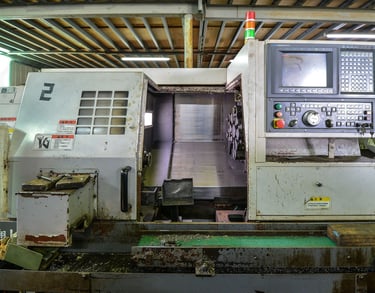

L270E-II

General Technical Specifications :

Capacity

• Swing over bed: 350 mm

• Swing over carriage: 395 mm

• Between centers: 365 mm (42B3 M) / 330 mm (52B3 M variant)

• Maximum turning diameter: 105 mm

• Standard turning diameter: 60 mm

• Bar capacity (main): 42 mm (variants: 52 mm, 60 mm)

Axis Travels

• X-axis (cross): 80 mm

• Z-axis (longitudinal): 180 mm

• B-axis (sub-spindle): 300 mm

Main Spindle

• Maximum speed: 4,000 rpm (or 3,500 rpm depending on variant)

• Spindle nose: A2-5 (173E) or A2-6 (175E/181E) depending on model

• Spindle bore: 56 mm, 62.5 mm, or 75 mm

• Inner bearing diameter: 90 mm or 100 mm

Live Turret (Turret Spindle)

• Maximum speed: 6,000 rpm

• Tool type: VDI30 or BMT55 (ER collet type – 25 mm or 32 mm)

• Number of tools: 12

• Tool shank size: 20 mm

• Max. boring bar diameter: 25 mm or 32 mm

• Tool-to-tool change: 0.15 sec (0.5 sec including turret indexing)

Feed Rates & Motors

• Rapid feedrate: up to 24 m/min

• Jog feedrate: 6,000 mm/min

• Spindle motor options (cont./30 min): 5.5 kW, 7.5 kW, 9 kW, or 11 kW

• Live-spindle motor: 2.2 kW or 3.7 kW

• Feed servo motors: 1.8 kW × 2 axes

Additional Features

• Controller options: FANUC, Mitsubishi, or SYNTEC (e.g., Oi-TF, M80, 21TA)

• Power requirement: approx. 20–25 kVA

Dimensions & Weight

• With chip conveyor: approx. 2,835 (L) × 1,372 (W) × (1,590 + 425) mm (H)

• Net weight (with standard accessories): approx. 3,200 kg

General Technical Specifications :

Capacity

• Swing over bed: 450 mm

• Swing over cross-slide (carriage): 270 mm

• Between centers (distance centre to centre): 600 mm

• Maximum turning diameter: 270 mm

• Standard turning diameter: —

• Bar capacity (main): Not specified

Axis Travels

• X-axis (cross): 155 mm

• Z-axis (longitudinal): 520 mm

Main Spindle

• Maximum speed: 4,200 rpm (range: 100–4,200 rpm)

• Spindle nose: A2-6 Spindle bore: approx. 53 mm

Live Turret (Turret Spindle)

• Maximum speed: Not specified

• Tool type: Standard turret

• Number of tools: 8 positions

• Tool shank size: Not specified

• Max. boring bar diameter: N/A

• Tool-to-tool change: Not specified

Feed Rates & Motors

• Rapid feedrate: Not specified

• Jog feedrate: Not specified

• Spindle motor options: Approx. 11 kW spindle power

• Live-spindle motor: Not applicable

• Feed servo motors: Not specified

Additional Features

• Controller options: OSP-U10L / OSP-U10 OL

• Power requirement: Not specified

• Tailstock: Hydraulic tailstock included

• Chip conveyor: Optional equipment (not necessarily included)

Dimensions & Weight

• Dimensions (L × W × H): approx. 2,800 × 1,850 × 2,000 mm

• Net weight: approx. 4,000 kg

• Exapro

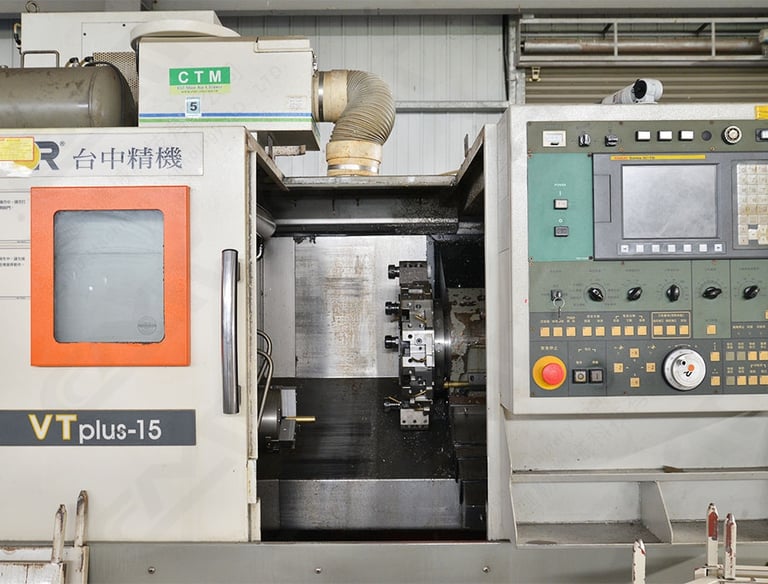

V-15

General Technical Specifications :

Capacity

• Swing over bed: 500 mm

• Swing over carriage (Ø above transversing slide): ~265 mm

• Between centers (turning length): 420 mm (also listed as 405 mm)

• Maximum turning diameter: 260 mm

• Standard turning diameter: ~190 mm

• Bar capacity: Ø 40 mm

Axis Travels

• X-axis (cross): 150 mm

• Z-axis (longitudinal): 320 mm

• B-axis (sub-spindle): Not equipped

Main Spindle

• Maximum speed: 6,000 rpm

• Spindle nose: A2-5

• Spindle bore: 40 mm

• Inner bearing diameter: Not specified

Live Turret (Turret Spindle)

• Maximum speed: Not specified

• Tool type: Turret with 20 mm shank tool holders

• Number of tools: 12-position turret

• Tool shank size: 20 mm

• Max. boring bar diameter: Not specified

• Tool-to-tool change: Not specified

Feed Rates & Motors

• Rapid feedrate: Not specified

• Jog feedrate: Not specified

• Spindle motor power: 7.5 kW (approx. 5.5–7.5 kW range)

• Live-spindle motor: Not applicable

• Feed servo motors: Not specified

Additional Features

• Controller options: FANUC O-T / FANUC OT series

• Power requirement: 380 V (3-phase)

• Chuck: Kitagawa B-206 hydraulic chuck

• Additional accessories: Bar feeder, parts catcher, swarf (chip) conveyor (as per auction listing)

Dimensions & Weight

• Footprint (L × W × H): 2050 × 1525 × 1800 mm

• Net weight: ~3,800 kg

• Exapro

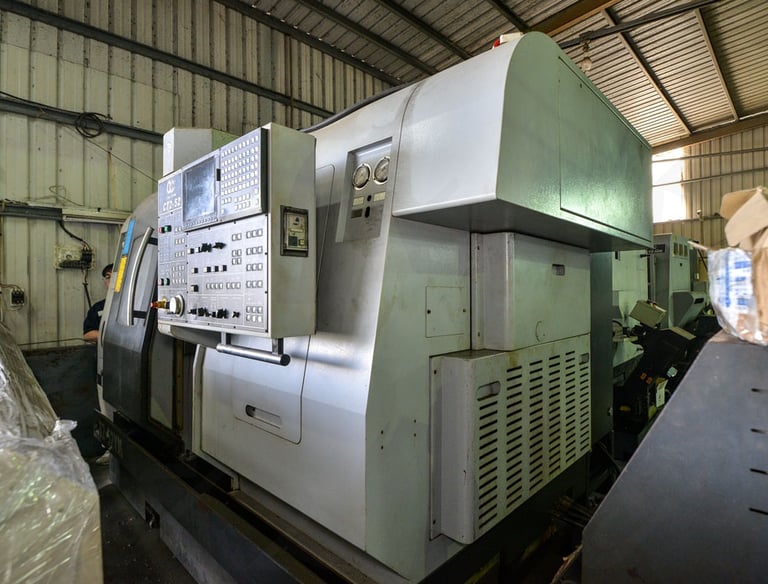

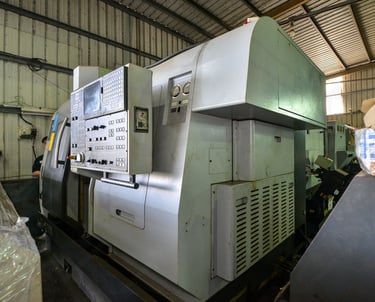

CT2-52

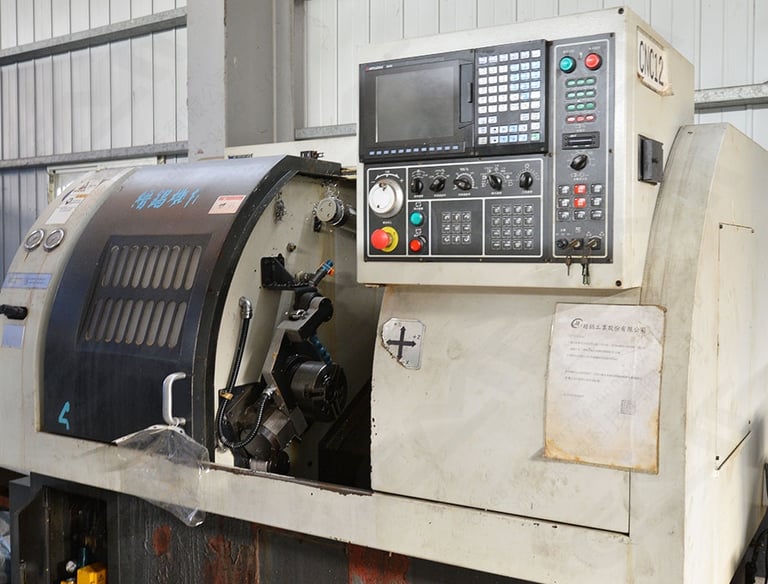

JCL-4226

General Technical Specifications :

Capacity

• Maximum turning diameter: Ø325 mm over bed

• Standard turning diameter: Ø210 mm

• Swing over bed: Ø830 mm

• Distance between centers: 920 mm

• Maximum machining length: 400 mm

• Bar capacity: Ø51 mm (optional Ø76 mm)

Axis Travels

• X-axis travel (X1, X2, X3): approx. 227.5 / 230 / 227.5 mm

• Z-axis travel (Z1, Z2, Z3): approx. 440 / 440 mm

• Y-axis travel (Y1, Y2): ±50 mm (Y-axis models)

• B-axis travel (rapid rotary): 650 mm

Main Spindle

• Spindle speed (main & sub-spindle): 4,000 rpm standard (optional up to 6,000 rpm)

• Spindle motor: 7.5 kW / 11 kW (M), 11 kW / 15 kW (F)

• Spindle nose: A2-5

• Spindle bore: Ø60.5 mm

• Spindle bearing diameter: Ø90 mm

• Chuck size: 6″

Live Turret (Turret Spindle)

• Turret stations: 16 (per turret)

• Tool capacity: O.D. square tools 25 mm; I.D. round tools Ø25 mm

• Live tool speed: 60–6,000 rpm

• Live tool motor: 3.7 kW / 5.5 kW

• Collet size: ER Ø32

• Toolholder type: BMT65

Speeds, Control & Power

• Rapid travel (X / Y / Z): 16 / 6 / 40 m/min

• B-axis rapid travel: 40 m/min

• Minimum program increment: 0.001 mm

• C-axis rapid: 600 min⁻¹

• Power requirement: approx. 60 kVA

• Hydraulic motor: 5 HP / 3.7 kW

• Coolant motor: ~1 HP / 0.75 kW

Machine Physicals

• Machine dimensions (L × W × H): approx. 4,216 × 2,342 × 2,144 mm (with chip conveyor)

• Machine weight: approx. 10,200 kg

General Technical Specifications :

Capacity

• Swing over bed: 510 mm (Jinn Fabulgaria)

• Maximum turning diameter: Ø 230 mm (Jinn Fabulgaria)

• Between centers (turning length): 260 mm (Jinn Fabulgaria)

• (Other capacity parameters like swing over carriage or standard turning diameter are not specified in available sources.)

Axis Travels

• Information on X-axis, Z-axis, and B-axis travels is not explicitly listed for the JCL-4226M model in current documentation.

Main Spindle

• Details such as spindle speed, spindle nose, bore, or bearing diameter are not available for this specific model.

Live Turret (Turret Spindle)

• Tool turret: Likely 12-position turret, aligning with the JCL-E series' capabilities (Jinn Fabulgaria)

• Tool turret speed, tool shank size, change time, etc., are not specified.

Feed Rates & Motors

• Specific feed rates and motor power ratings are not available for JCL-4226M from the sources consulted.

Additional Features

• Built on a Meehanite cast-iron mold base, offering rigidity and stability (Jinn Fabulgaria)

• High-rigidity linear guideways for axis movement (Jinn Fabulgaria)

• Features like turbo-powered turret and linear motion enhancement typical of JCL-E series may be applicable.

Dimensions & Weight

• Exact overall dimensions and net weight are not stated for the JCL-4226M model.

CNC Mailing Machine

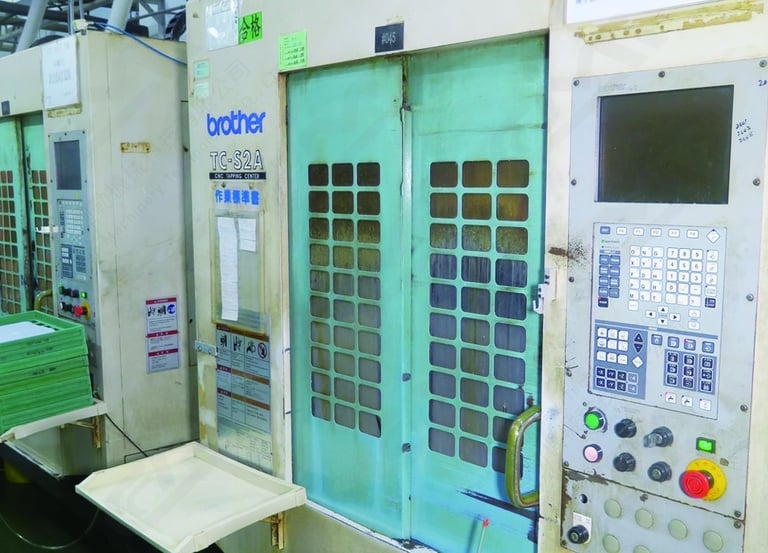

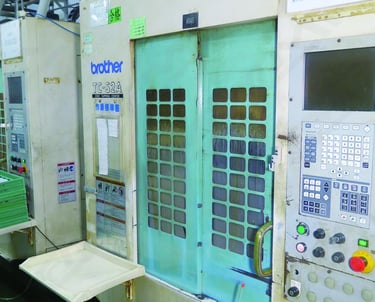

TC-S2C

General Specifications

• Control System: Brother CNC B00

• Spindle Speeds: 10,000 rpm or 16,000 rpm

• Spindle Taper: BT-30

• Tool Changer: 14-position dial-type automatic tool changer

• Rapid Traverse Rates: 50 m/min (X, Y, Z axes)

• Chip Removal: Chain-type chip conveyor

• Coolant System: Optional 50L, 100L, or 150L coolant tank

• Lubrication: Manual grease lubrication system

Travel & Work Area

• X-Axis Travel: 700 mm

• Y-Axis Travel: 400 mm

• Z-Axis Travel: 300 mm

• Table Dimensions: 800 mm × 320 mm

• Max Workpiece Weight: 200 kg

• Machine Dimensions (L × W × H): approx. 2,135 × 2,844 × 2,616 mm

• Machine Weight: approx. 2,500 kg

GANG TOOL TYPE LATHE

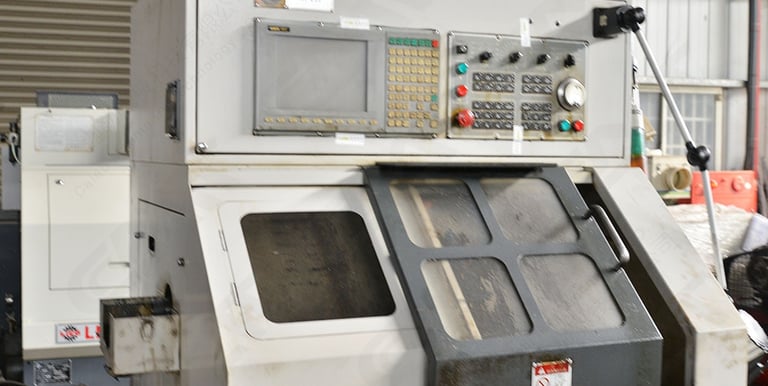

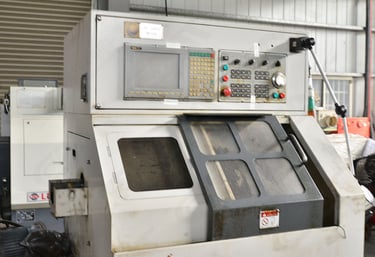

RC-25

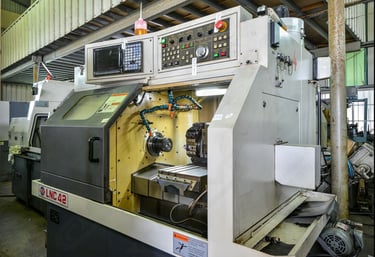

LNC42

General Technical Specifications:

1. Machine Type

• Precision CNC Lathe with Gang Tool Setup

2. Chuck Size

• Typically 6” or 8” (varies by manufacturer)

3. Capacity

• Max swing over bed: around 420 mm (varies slightly by model)

• Max swing over cross slide: approx. 220 mm

• Distance between centers: around 1000 mm or more

4. Spindle

• Spindle bore diameter: around 52 mm

• Spindle speed range: variable, typically 20 – 3500 RPM

5. Tool System Tool type: Gang

• Tool Post – multiple cutting tools mounted on a linear tool holder, arranged side-byside for fast tool changes without turret rotation.

• Common in high-precision, high-speed production environments.

• Number of tool stations: typically 4 to 6 gang tool stations (depends on model)

6. Feed Rates

• Variable feed with precise control (both longitudinal and cross feeds)

7. Control System

• CNC or CNC retrofitted (depends on machine age/model)

• Some models use Fanuc or other popular CNC controls

8. Tailstock

• Manual or hydraulic tailstock for part support

9. Power & Weight

• Machine weight: usually several tons (depending on build and size)

• Motor power: around 7.5 kW (varies)

10. Applications

• Precision turning of shafts, pins, bushings, and complex parts

• Allows multiple tools to be used simultaneously or in rapid sequence

General Technical Specifications:

1. Machine Type

• Gang Tool Lathe (Manual or CNC-controlled depending on variant)

2. Chuck Size

• Typically 6 inches (150 mm) or 8 inches (200 mm) (depending on configuration)

3. Capacity

• Maximum swing over bed: approx. 250 mm (10 inches)

• Maximum swing over cross slide: around 130 mm

• Distance between centers: typically 500 mm to 750 mm (depends on machine length)

4. Spindle

• Spindle bore diameter: usually about 42 mm to 50 mm

• Spindle speed range: variable speeds up to around 3000–3500 RPM

5. Tool System Tool type: Gang

• Tool post type: Gang Tool Post – multiple tools mounted in a linear arrangement on a fixed tool holder, allowing rapid tool changes without rotating a turret.

• Number of tool stations: usually 4 to 6 tools arranged side-by-side on the gang tool post

6. Feed Rates

• Controlled longitudinal and cross-feed

• Fine adjustment for precise machining

7. Tailstock

• Manual tailstock for supporting longer workpieces

8. Power & Weight

• Motor power: generally in the range of 5 to 7.5 kW

• Approximate machine weight: around 1,200 to 1,500 kg

9. Applications

• High-precision small to medium parts production

• Ideal for multiple cutting operations in one setup such as turning, facing, grooving, and threading

TURN MILL CNC LATHE

BO204LL

General Technical Specifications:

Type:

4-Axis Opposed Gang-Tool Swiss-Style CNC Lathe

Bar Capacity: Ø 20 mm

Axes:

• Total: 4 axes (3 on main spindle, 1 on sub spindle) Sliding Headstock / Guide Bushing:

• Yes; convertible to chucker (guide-bushless) mode

Maximum Headstock Stroke:

• With guide bushing: up to 170 mm

• Without (chucker mode): 45 mm

Tool Positions:

• Total standard positions: 17 (9 outer-diameter + 8 fixed, front and rear)

• Live tool positions (standard): 4

Control Unit: FANUC 0i-TD

Spindle Speeds:

• Main Spindle: 200–10,000 rpm

• Sub Spindle: 200–12,000 rpm

Spindle Motor Power:

• Standard: 2.2 kW

• Optional: up to 3.7 kW

Rapid Traverse Rate: 32 m/min

Enriched NC Functions: Standard (e.g. tool nose radius compensation, chamfering, corner rounding, cutoff detection)

Weight: 1,950 kg

Footprint (W × D × H): 1,655 × 1,135 × 1,700 mm

B0204

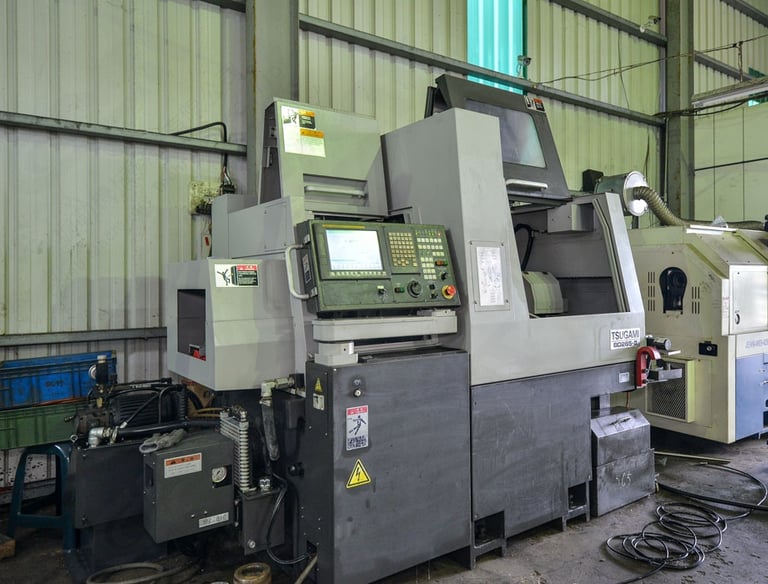

BO265LL

General Technical Specifications:

Type:

4-Axis Opposed Gang-Tool Swiss-Style CNC Lathe (convertible to chucker mode)

Bar Capacity: Ø 20 mm

Axes:

• Total 4 axes (X1, Z1, Y1 on main spindle; Z2 on subspindle)

• Sliding Headstock / Guide Bushing: Yes; convertible to chucker (guide-bushless) mode

Maximum Headstock Stroke:

• With guide bushing: 170 mm

• Without (chucker mode): 45 mm

Tool Positions:

• Total standard positions: 17 (9 OD + 8 fixed, front and rear)

• Live tool positions: 4

Control Unit: FANUC 0i-TD

Spindle Speeds:

• Main Spindle: 200–10,000 rpm

• Sub Spindle: 200–12,000 rpm

Spindle Motor Power:

• Standard: 2.2 kW

• Optional: up to 3.7 kW

Rapid Traverse Rate: 32 m/min

Enriched NC Functions: Tool nose radius compensation, chamfering, corner rounding, cut-off detection, safety interlocks, and more.

Weight: 1,950 kg

Footprint (W × D × H): 1,655 × 1,135 × 1,700 mm

General Technical Specifications:

• Diameter Capacity: ~26 mm (1.02″)

• Spindle Speeds: Same (Main: 10,000 rpm; Back: 10,000 rpm)

• Tool Positions: ~27–39 tools

• Axes: 5 axes (with live tooling)

• Spindle Motor: ~3.7 HP (~2.8 kW)

• Rapid Traverse Rate: ~32 m/min (slightly lower)

• Size / Footprint: ~2,150 × 1,280 × 1,930 mm

• Weight: Similar range

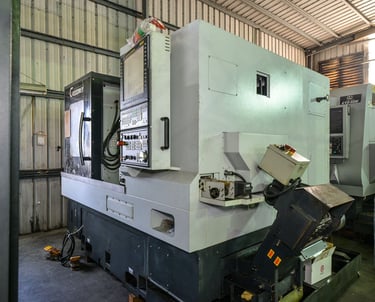

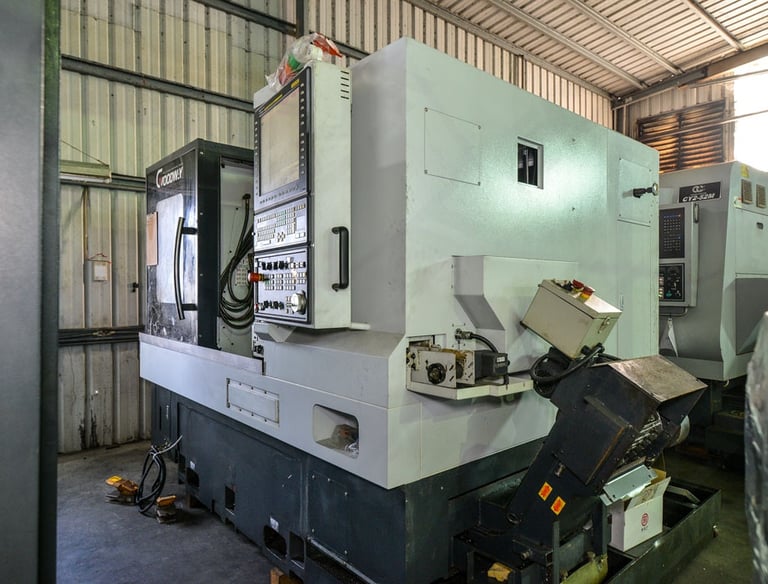

CTW-1500Y

General Technical Specifications:

Capacity:

• Max Swing Over Bed: 500 mm

• Max Turning Diameter: 300 mm

• Max Turning Length: 500 mm

• Bar Capacity: Ø 52 mm

Spindle:

• Spindle Nose: A2-6

• Spindle Bore: Ø 62 mm

• Spindle Speed: 4,000 rpm (variable)

• Main Motor Power: 15 / 18.5 kW

Turret & Tooling:

• Turret Stations: 12 (Live tooling capable)

• Live Tool Speed: up to 4,000 rpm

• Y-Axis Travel: ±50 mm

• X-Axis Travel: 210 mm

• Z-Axis Travel: 550 mm

Accuracy:

• Positioning Accuracy: ±0.005 mm

• Repeatability: ±0.003 mm

Control System:

• CNC Controller: Fanuc / Mitsubishi / Siemens (depending on configuration)

Other Features:

• Automatic chip conveyor

• Hydraulic chuck

• Coolant system

• Tailstock / sub-spindle (optional)

Dimensions & Weight:

• Machine Dimensions (L × W × H): 3,000 × 2,000 × 2,100 mm

• Machine Weight: ~6,000 kg

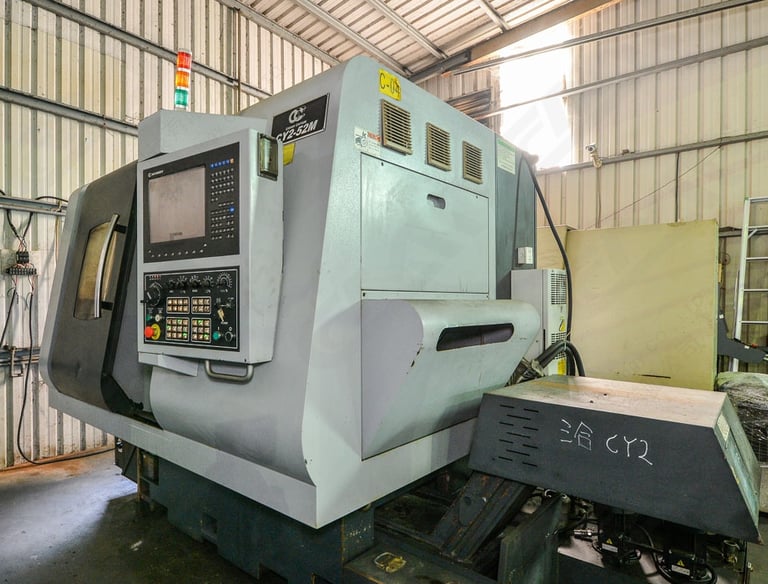

CY52M

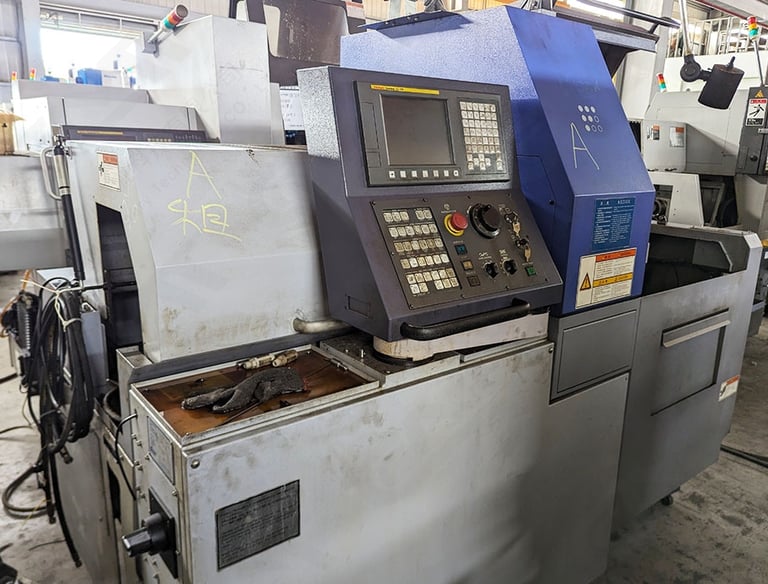

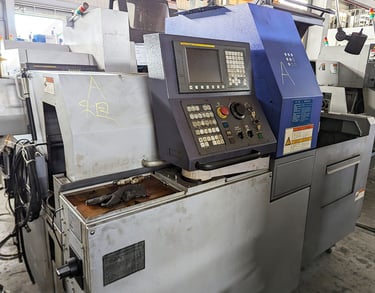

SB-20

General Technical Specifications:

• Bar Capacity: Ø51 mm

• Max Turning Length: 180 mm

• Spindle Speed: Up to 6,000 rpm (both spindles)

• Main Axes Travel: X1: 200 mm, Y1: 460 mm, Z1: 192 mm

• Sub Axes Travel: X2: 486 mm, Y2: 450 mm, Z2: 228 mm

• Live Tooling: B-axis swivel with radial & axial live tools

• Motor Power: Spindles 7.5 kW (optional up to 11 kW)

• Weight / Size: ~5,567 kg; 3,726 × 2,144 × 2,080 mm

General Technical Specifications:

• Machining Diameter: Ø20 mm (optional Ø22.2 mm)

• Headstock Stroke: 205 mm / 50 mm

• Axes: 7 axes (Z1/C1, X1/Y1, X2/Z2/C2)

• Main Spindle: up to 15,000 rpm / 3.7 kW

• Sub-Spindle: up to 9,000 rpm / 1.1 kW

• Tooling (Main Spindle): 6 turning tools + drilling + power tools

• Back-Working Tools: 4 fixed + power-driven units

• Rapid Traverse: 35 m/min

• Weight / Dimensions: ~1,750 kg; 2,070 × 1,177 × 1,760 mm

B012AE

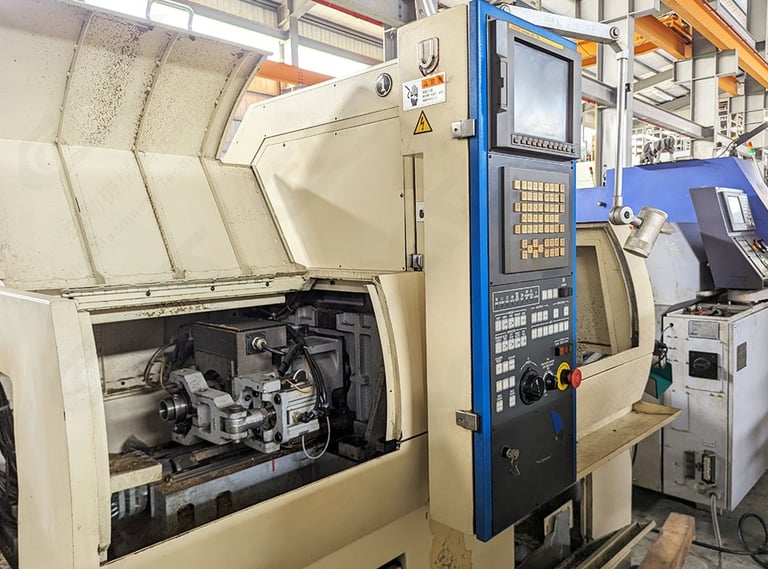

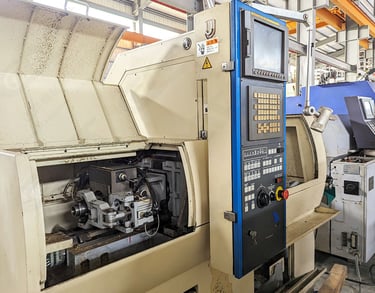

B026

General Technical Specifications:

• Bar Capacity / Machining Diameter: 3 – 12 mm

• Max Turning Length: 140 mm

• Max Drilling Diameter: 7 mm

• Threading: Up to M6

• Spindle Speed: 200 – 12,000 rpm (stepless)

• Tool Stations: 10 (5 turning, 3 drilling, 2 transverse processing)

• Rapid Traverse Rate: 18 m/min

• Spindle Motor Output: 1.5 / 2.2 kW

• Control: Tsugami-FANUC LB1

• Weight / Dimensions: ~1,400 kg; 1,700 × 900 × 1,660 mm

General Technical Specifications:

• Max Machining Diameter: 26 mm

• Spindle Speed (Main & Sub): 200 – 10,000 rpm

• Axes: 5-axis configuration, Fanuc 32i-M CNC control

• Live Tooling: 3 live tools included

• Sub-Spindle: Yes (secondary operations)

• Bar Feeder: Programmable bar feeder capability

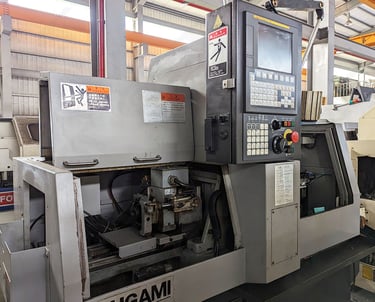

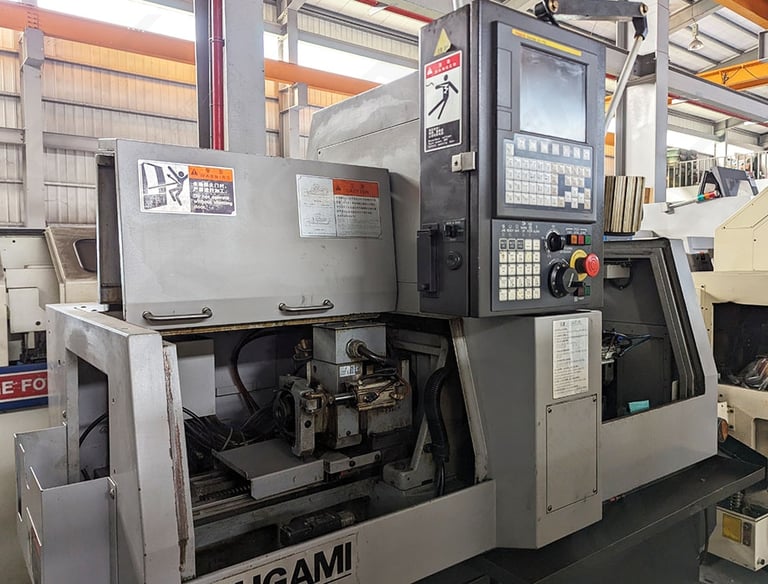

B0125

General Technical Specifications:

• Bar Capacity: 12 mm (0.5")

• Max Machining Length:

  • Guide bushing: 210 mm

  • No guide bushing (chucker mode): 45 mm

• Tool Positions: 21 total

  • 9 position OD tools

  • 12 position fixed tools (opsional 2 rotary untuk rear)

• Live Tool Positions: Until 4

• Main Spindle Speed: 200 – 12,000 rpm

• Sub Spindle Speed: 200 – 12,000 rpm

• Live Tool Speed: Hingga 8,000 rpm

• Main Spindle Motor: 3 hp (1.5 / 2.2 kW)

• Control: FANUC 0i-TF

• Weight: ± 2,000 kg (4,409 lbs)

• Dimensions (W × D × H): 1,665 × 1,125 × 1,700 mm

• Rapid Traverse Rates: Hingga 32 m/min

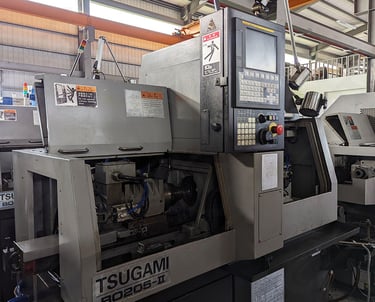

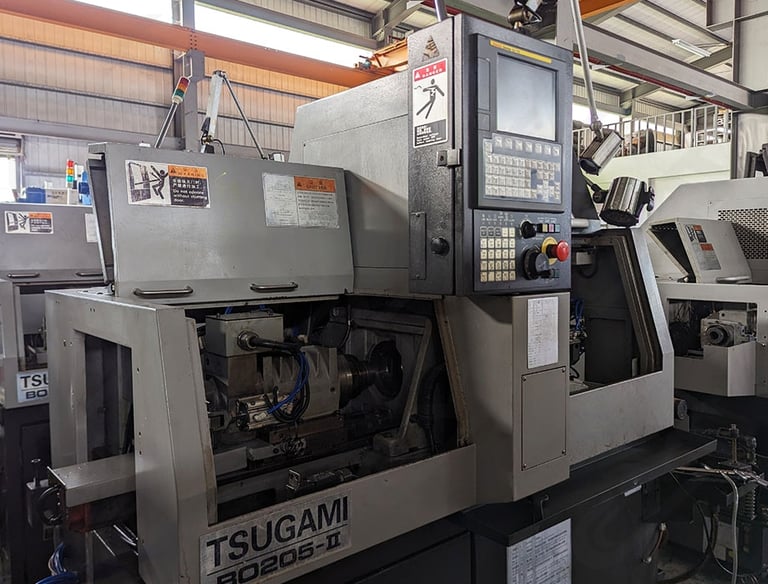

BO205-II

General Technical Specifications:

• Barstock Diameter: 20 mm

• Max Machining Length: 210 mm

• Main Spindle Speed: 10,000 rpm

• Back Spindle Speed: 12,000 rpm

• Live Tool Speed: 5,000 rpm

• Tool Positions: 21 (9 OD, 4 fixed front, 8 fixed rear)

• CNC Control: FANUC Series 0i-TD

• Rapid Traverse Rate: 32 m/min

• Dimensions (W × D × H): 1,655 × 1,125 × 1,700 mm

• Weight: ± 2,000 kg

General Technical Specifications:

• Barstock Diameter: Hingga 20 mm

• Max Machining Length: 210 mm

• Main Spindle Speed: 10,000 rpm

• Back Spindle Speed: 12,000 rpm

• Live Tool Speed: 8,000 rpm (opsional)

• Tool Positions: 21 (9 OD, 4 fixed front, 8 fixed rear atau 6 fixed + 2 rotary)

• CNC Control: FANUC Oi-TF Plus

• Rapid Traverse Rate: 32 m/min

• Dimensions (W × D × H): 1,655 × 1,125 × 1,700 mm

• Weight: ± 2,000 kg

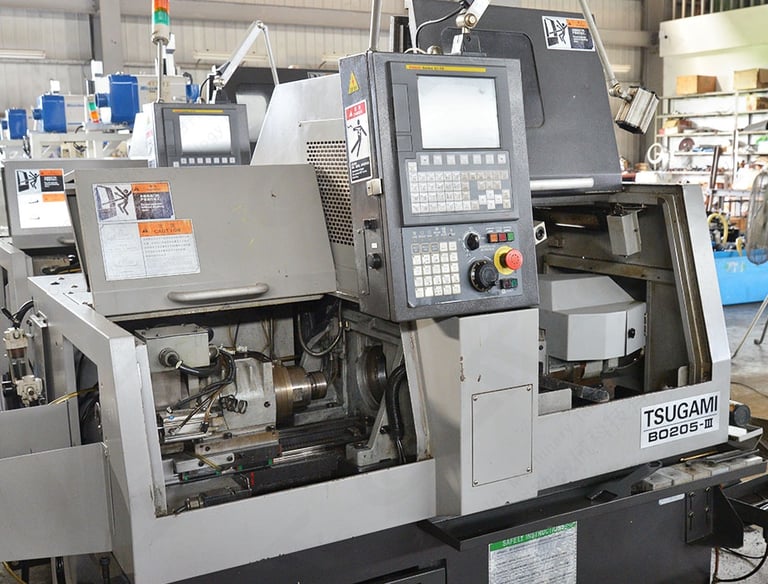

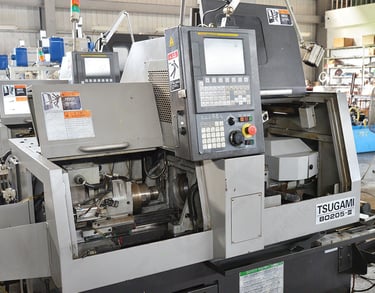

BO205-III
